MPXV5004GVP

Pressure Sensors Transducers Overview

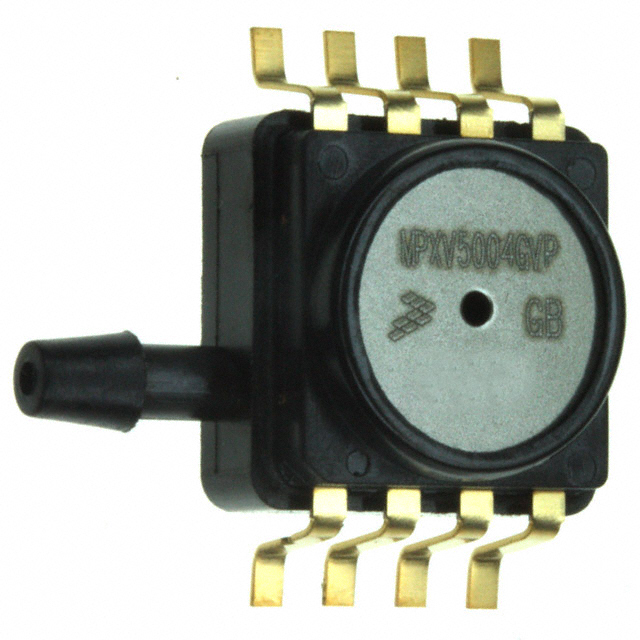

The MPXV5004GVP is a miniature piezoresistive pressure sensor designed for automotive applications. It features an analog output and operates on a 5 V supply voltage with a maximum of 5.25 V and minimum of 4.75 V. The device measures vacuum pressure up to 0.57 psi with 1.5% accuracy. It utilizes a DIP-8 package and has no port configuration. Operating temperatures range from 0°C to +85°C, drawing 10 mA current. The output voltage reaches 4.9 V.

Pressure Sensors Transducers Feature Summary

• Integrated signal conditioning and temperature compensation for high accuracy
• Monolithic silicon piezoresistive transducer design
• Cost-effective solution for automotive applications

Pressure Sensors Transducers Applications

• Automotive systems requiring reliable pressure sensing
• Vacuum pressure monitoring in vehicle components
• Applications utilizing board-mount DIP-8 packaging

Pressure Sensors Transducers Procurement Notes

Verify component authenticity against original datasheets as the part is discontinued. Confirm RoHS compliance details before integration. Ensure compatibility with existing DIP-8 footprints. Check for obsolescence notices or lifecycle changes. Validate electrical parameters match system requirements precisely.

Pressure Sensors Transducers Selection Notes

Select this model for vacuum pressure sensing needs within the specified range. Consider the DIP-8 package constraint for PCB layout. Verify that the 5 V supply aligns with system power rails. Assess if the 1.5% accuracy meets application tolerances. Evaluate thermal performance within the 0°C to +85°C operational window.

Pressure Sensors Transducers Part Context

Part of the MPXx5004 series of piezoresistive transducers. Manufactured by STMicroelectronics, originally Freescale. Designed for cost-effective automotive solutions. Provides state-of-the-art monolithic silicon technology. Offers integrated signal conditioning for simplified system design.

Pressure Sensors Transducers Replacement Considerations

The MPXV5004GC6T1 offers gauge pressure sensing in SOP-8. The MPXV5004DP provides differential pressure sensing in SOP-8. Both are active alternatives within the same series. Verify package and port differences carefully.
