MS88SFB-3Y40AIR

RF Transceiver Modules And Modems Overview

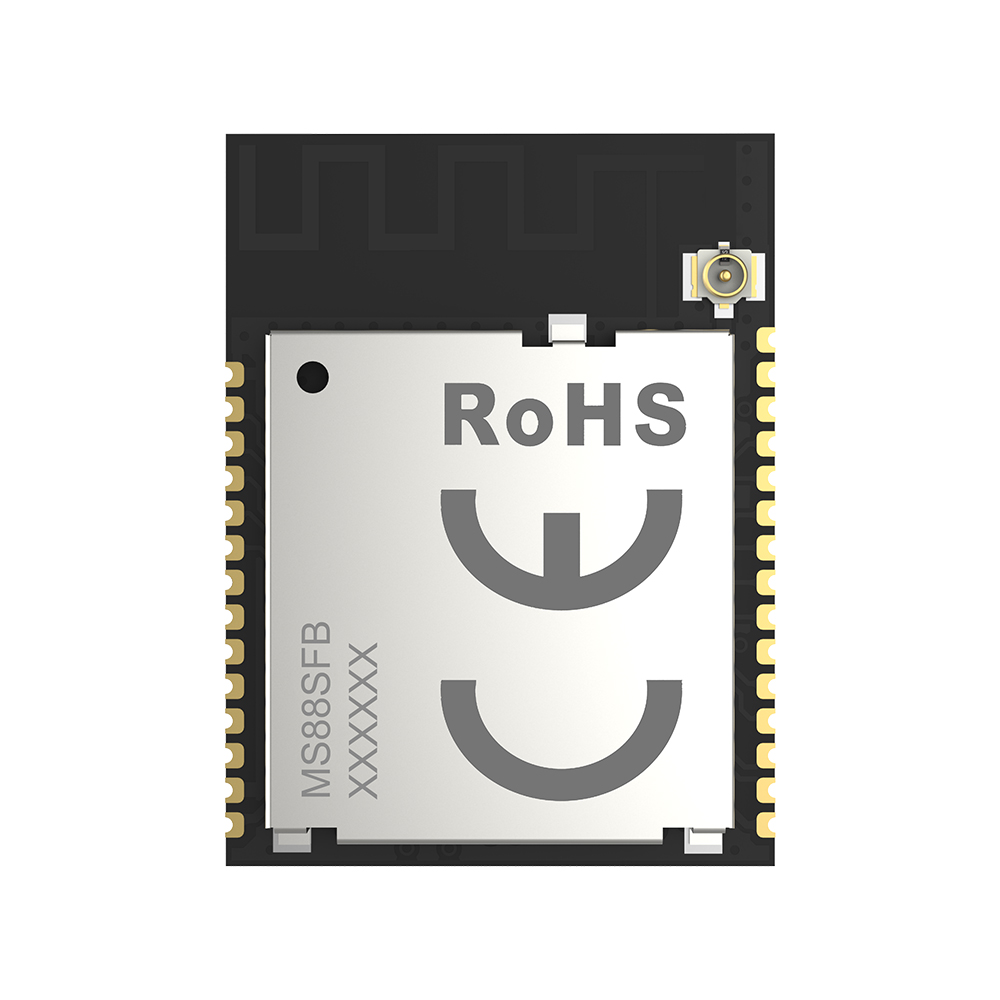

The MS88SFB-3Y40AIR is a Bluetooth Low Energy transceiver module manufactured by MinewSemi, utilizing the nRF52840 system-on-chip. It supports Bluetooth v5.4 protocol and features an integrated PCB antenna. The module operates on a supply voltage range of 1.7V to 5.5V. Key electrical parameters include a receiving current of 4.6mA and a transmitting current of 4.9mA. It provides 1MB of flash memory and 256kB of RAM. The device functions within an operating temperature range of -40°C to 85°C.

RF Transceiver Modules And Modems Feature Summary

• Integrates the nRF52840 SoC with a 32-bit ARM Cortex-M4F processor for ultra-low power performance.
• Supports Bluetooth v5.4 protocol with master-slave mode switching capabilities via command.
• Features an integrated PCB antenna design for compact form factor applications.

RF Transceiver Modules And Modems Applications

• Bluetooth Low Energy connectivity solutions
• IoT sensor nodes
• Wearable devices

RF Transceiver Modules And Modems Procurement Notes

Verify the specific suffix configuration against the official datasheet to ensure compatibility with required interface standards and regulatory certifications. Confirm that the nRF52840-based variant meets all necessary technical specifications for the intended deployment environment before procurement.

RF Transceiver Modules And Modems Selection Notes

Select this module when high-performance BLE 5.4 connectivity is required alongside significant onboard memory resources. The nRF52840 foundation offers robust processing capabilities suitable for complex application logic. Ensure the PCB antenna type aligns with the physical constraints of the target enclosure design.

RF Transceiver Modules And Modems Part Context

This component belongs to the MS88SFB series of Bluetooth modules produced by MinewSemi. It is part of a family of RF transceivers designed for wireless communication applications. The series leverages Nordic Semiconductor's silicon platform to provide reliable short-range wireless data transmission.

RF Transceiver Modules And Modems Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer guidelines for direct equivalents or updated series revisions.
