MS88SFB-8Y33AIR

$6.38

Description：RF NRF52833 BLUETOOTH LE 5.4
Series：-
Mfr：Minewsemi
Package：Tape & Reel (TR)

SKU:8f28fbc0bb4d Category: RF Transceiver Modules and Modems Brand: Minewsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MS88SFB-8Y33AIR is listed in the RF Transceiver Modules And Modems range at ChipApex. The manufacturer field lists Minewsemi. Its product description is RF NRF52833 BLUETOOTH LE 5.4. Review the specifications below when checking this part for your BOM.

RF Transceiver Modules And Modems specifications for MS88SFB-8Y33AIR

Description：RF NRF52833 BLUETOOTH LE 5.4
Series：-
Mfr：Minewsemi
Package：Tape & Reel (TR)
RF Family/Standard：Bluetooth
Protocol：Bluetooth v5.4
Modulation：-
Frequency：-
Data Rate：-
Power - Output：-
Sensitivity：-96dBm
Serial Interfaces：GPIO
Antenna Type：U.FL, PCB
Utilized IC / Part：nRF52833
Memory Size：512kB Flash, 128kB RAM
Voltage - Supply：1.7V ~ 5.5V
Current - Receiving：-
Current - Transmitting：-
Mounting Type：-
Operating Temperature：-40°C ~ 85°C
Package / Case：-

RF Transceiver Modules And Modems datasheet and documents for MS88SFB-8Y33AIR

MS88SFB-8Y33AIR

RF Transceiver Modules And Modems Overview

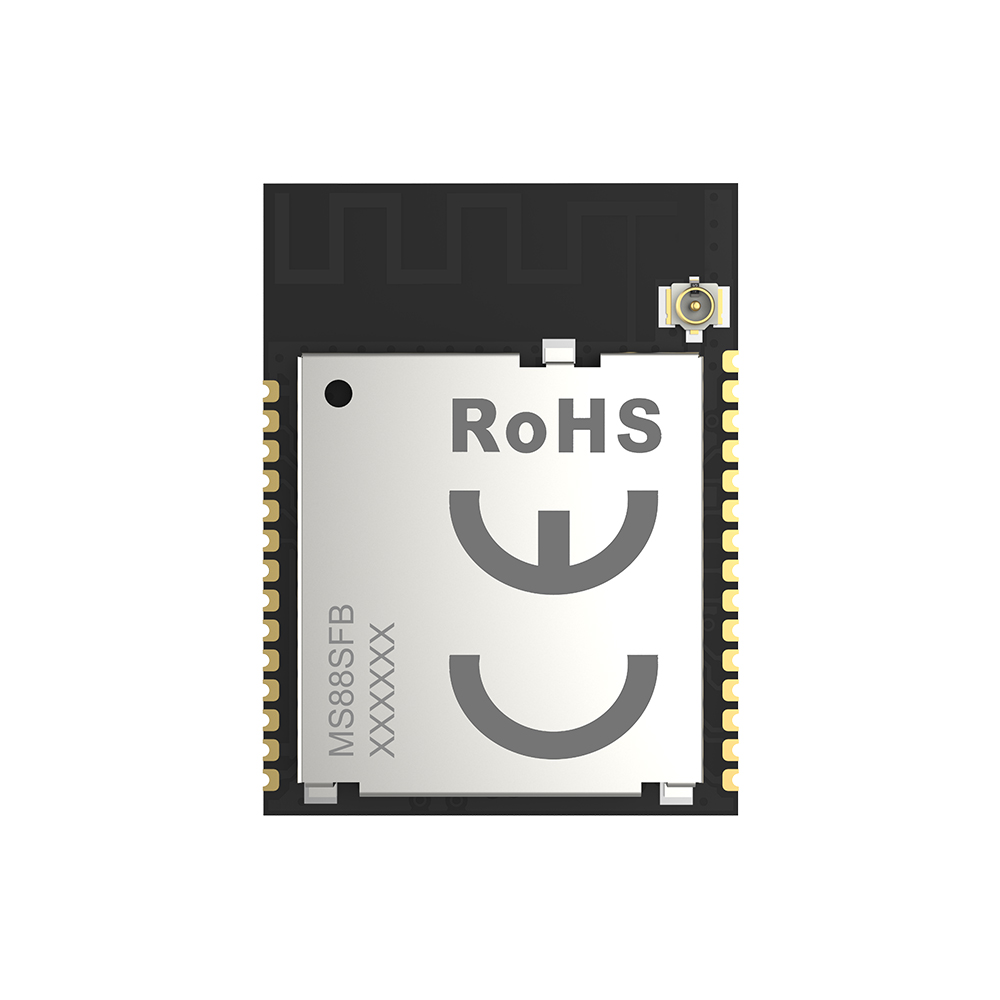

The MS88SFB-8Y33AIR is a Bluetooth LE module based on the nRF52833 SoC, supporting Bluetooth v5.4. It features an integrated PCB antenna and operates within a supply voltage range of 1.7V to 5.5V. The module provides 512kB Flash and 128kB RAM memory. Key electrical parameters include a receiving current of 4.6mA and a transmitting current of 4.9mA. It supports GPIO serial interfaces and functions within an operating temperature range of -40°C to 85°C.

RF Transceiver Modules And Modems Feature Summary

Supports master-slave mode switching via command
Integrates ARM Cortex-M4F CPU with FPU
Includes ARM TrustZone Cryptocell 310 co-processor

RF Transceiver Modules And Modems Applications

Bluetooth Low Energy transceiver systems
IoT sensor nodes
Wearable devices

RF Transceiver Modules And Modems Procurement Notes

Verify the specific suffix '8Y33AIR' against official MinewSemi documentation to confirm pinout and firmware compatibility. Ensure the source document explicitly lists this part number as active. Cross-reference the utilized IC nRF52833 specifications for interface requirements. Confirm environmental ratings match application needs.

RF Transceiver Modules And Modems Selection Notes

Select this module when Bluetooth v5.4 support and low power consumption are required. The integrated PCB antenna simplifies design compared to U.FL variants. Consider the 1.7V to 5.5V input range for flexible power architectures. Verify that the 4.6mA receive current meets system battery life targets.

RF Transceiver Modules And Modems Part Context

This module belongs to the MS88SFB series from MinewSemi. It utilizes the Nordic Semiconductor nRF52833 chip. The series includes variants like MS88SF3 and MS88SF2. These modules target compact wireless applications requiring BLE connectivity.
