MTLW-107-06-G-D-135

$2.69

Description：CONN HEADER VERT 14POS 2.54MM
Series：Flex Stack, MTLW
Mfr：Samtec Inc.
Package：Bulk

SKU:618baf754a21 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MTLW-107-06-G-D-135 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER VERT 14POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for MTLW-107-06-G-D-135

Description：CONN HEADER VERT 14POS 2.54MM
Series：Flex Stack, MTLW
Mfr：Samtec Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：14
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.135" (3.43mm)
Contact Length - Post：0.105" (2.67mm)
Overall Contact Length：0.300" (7.62mm)
Insulation Height：0.060" (1.52mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：5.2A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for MTLW-107-06-G-D-135

MTLW-107-06-G-D-135

Headers, Male Pins Overview

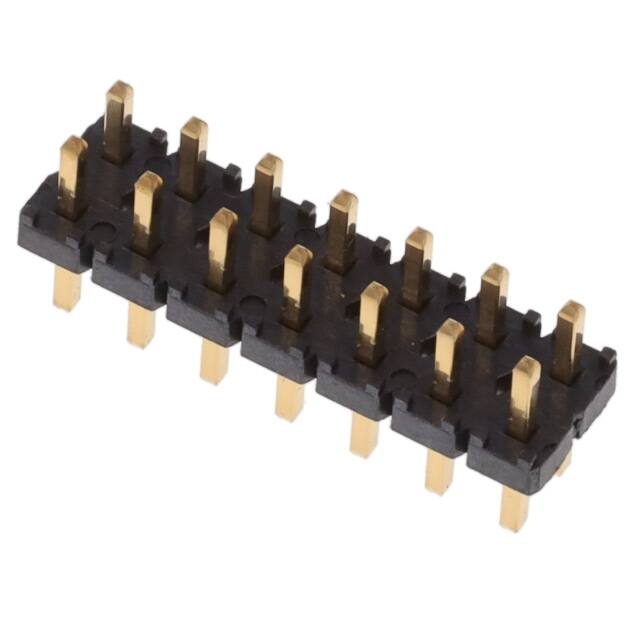

The Samtec MTLW-107-06-G-D-135 is a .100 inch pitch low-profile variable post height terminal strip. It features 14 positions arranged in a dual-row configuration with a 2.54 mm row spacing. Designed for through-hole mounting, the connector utilizes gold-plated phosphor bronze contacts and a black liquid crystal polymer (LCP) housing. The mating post length is specified at 3.429 mm (0.135 in), while the termination post length measures 2.671 mm (0.105 in). The component supports a current rating of 5.2 A and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

Variable post height design enables flexible board stacking configurations
Low profile construction optimizes vertical space utilization
Gold-plated contacts ensure reliable electrical connectivity

Headers, Male Pins Applications

Board-to-board interconnections
Cable assemblies
Electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix code to confirm the exact mating and termination post lengths required for your application. Confirm that the through-hole footprint matches your PCB layout constraints. Ensure the operating environment falls within the specified temperature range. Check RoHS compliance status if restricted substances are a concern. Validate the current rating against your circuit requirements.

Headers, Male Pins Selection Notes

Select this part when a fixed-height header is insufficient for your stack-up needs. The variable post feature allows for adjustment during assembly or accommodates varying board thicknesses. Consider the dual-row format for higher density connections. Verify that the straight mounting angle aligns with your mechanical design. Ensure the .100 inch pitch matches your mating connector specifications.

Headers, Male Pins Part Context

This component belongs to the MTLW series, which represents Samtec's Flex Stack line of low-profile terminal strips. The series is characterized by its ability to adjust post heights, providing versatility in board stacking applications. It serves as a specialized interconnect solution distinct from standard fixed-height headers, offering adaptability for complex multi-layer PCB designs.
