MTMM-104-07-S-D-239

Headers, Male Pins Overview

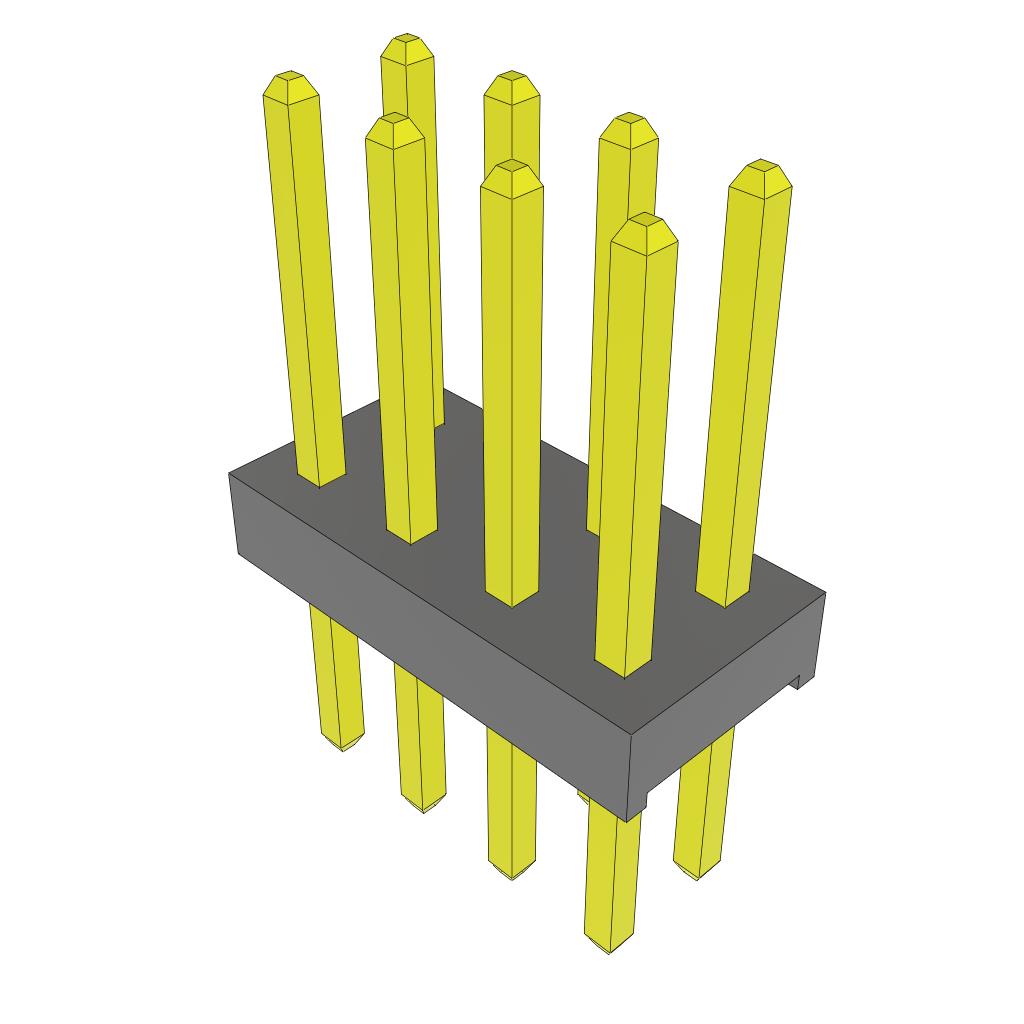

The Samtec MTMM-104-07-S-D-239 is a variable post height header strip featuring an 8-position, 2-row configuration with a 2 mm pitch. It utilizes through-hole solder pin termination and straight mounting orientation. The connector employs phosphor bronze contacts with gold plating housed in a black liquid crystal polymer (LCP) body. It operates within a temperature range of -55°C to +125°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Flex Stack design enables modified post height and body position adjustments in precise increments
• Variable post height capability allows customization for specific application clearances
• Low profile construction supports space-constrained board-to-board or wire-to-board connections

Headers, Male Pins Applications

• Board-to-board interconnects requiring flexible height adaptation
• Wire-to-board connections with variable mating depths
• Space-constrained electronic assemblies needing low profile headers

Headers, Male Pins Procurement Notes

Verify the exact suffix code against official Samtec documentation to confirm post height specifications. Ensure the selected variant matches the required mechanical clearance and electrical rating for the target application. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and compliance status before procurement.

Headers, Male Pins Selection Notes

Select this component when variable post height flexibility is required for precise mechanical alignment. The 2 mm pitch and 2-row configuration suit dense interconnect needs. Verify that the through-hole termination method aligns with the PCB manufacturing process. Confirm that the operating temperature range meets environmental requirements.

Headers, Male Pins Part Context

This part belongs to the Samtec MTMM series of low-profile, modified square post terminal strips. The series offers extensive customization options for pin count, row configuration, and post height. It is designed for applications demanding high flexibility in mechanical stack-up dimensions while maintaining reliable electrical performance.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for verified equivalent parts. Generic connectors may not replicate the variable post height functionality or specific mechanical tolerances of the MTMM series.
