MTSW-116-10-L-D-550

Headers, Male Pins Overview

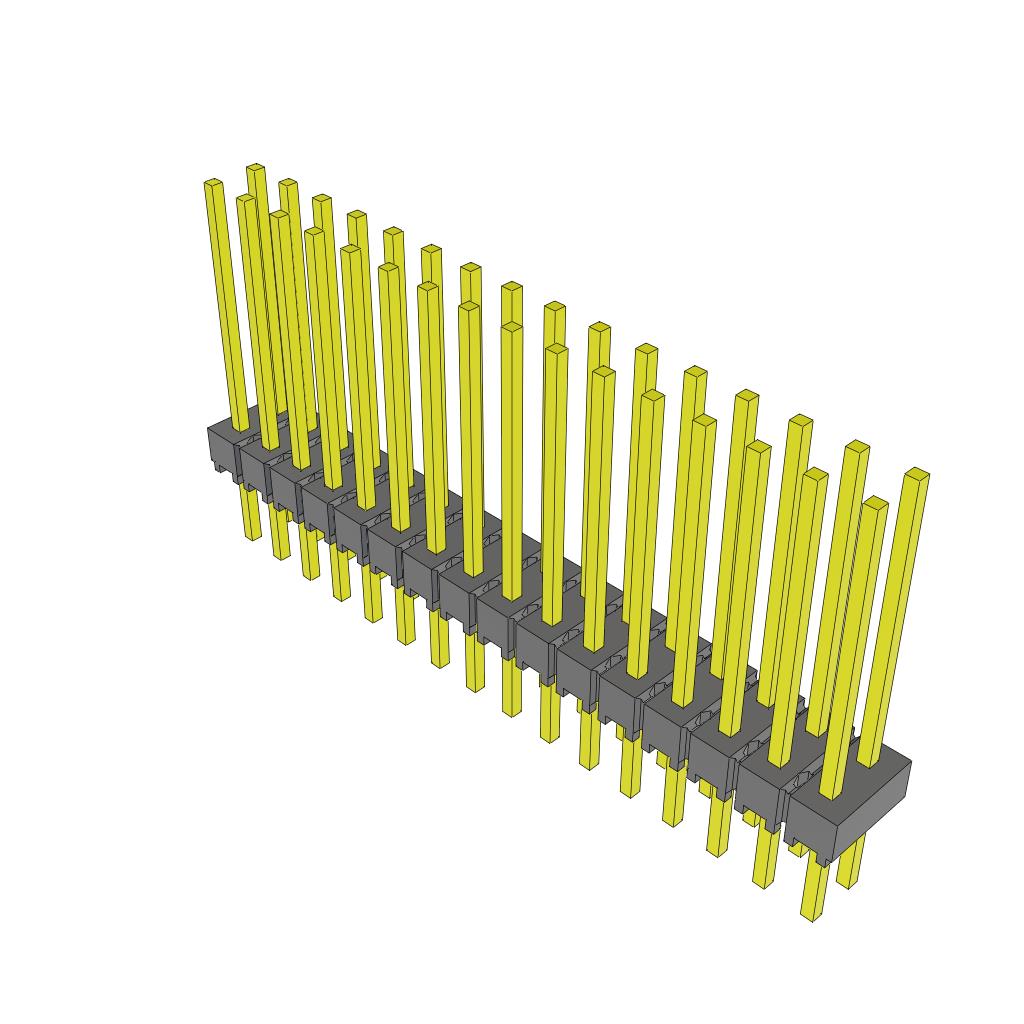

The MTSW-116-10-L-D-550 is a board stacking connector manufactured by Samtec Inc. It features 32 contacts arranged in two rows with male terminals. The connector utilizes straight solder termination and is RoHS compliant. Designed for vertical mounting, it employs a modified .025 inch square post terminal system with a .100 inch pitch. The contact finish consists of gold over nickel, while the termination finish is matte tin over nickel. This component belongs to the MTSW series, which offers variable height options.

Headers, Male Pins Feature Summary

• Flex Stack design allows modified post height and body position adjustments
• Variable height PCB header strip with choice of fourteen terminal lengths
• Modified .025 inch square post terminal system

Headers, Male Pins Applications

• Board stacking applications requiring variable height
• General purpose interconnect solutions
• Vertical or right-angle PCB mounting

Headers, Male Pins Procurement Notes

Verify the specific terminal length suffix (550) matches the required stack height. Confirm RoHS compliance status and contact finish specifications against project requirements. Ensure the straight solder termination method aligns with the assembly process. Cross-reference the mating part availability as multiple options exist within the series.

Headers, Male Pins Selection Notes

Select this variant when a specific .100 inch pitch header with modified square posts is needed. The Flex Stack feature accommodates slight misalignments or varying board thicknesses. Consider the available terminal lengths to ensure proper engagement without excessive protrusion. Verify that the male contact gender suits the intended socket interface.

Headers, Male Pins Part Context

This component is part of the MTSW series, a variation of the classic TSW header strip. The series provides a wide range of overall pin lengths to satisfy various application needs. It maintains the standard .100 inch pitch while offering enhanced flexibility through its modified post design. The product is classified as a general-purpose board stacking connector.

Headers, Male Pins Replacement Considerations

MTSW-116-10-L-D-400

Headers, Male Pins FAQ

What is the contact material for this connector?

The contact material is phosphor bronze.

Does this connector support automotive applications?

Automotive A-Series products are available within the MTSW series, but specific qualification for this part number requires verification against the automotive catalog.
