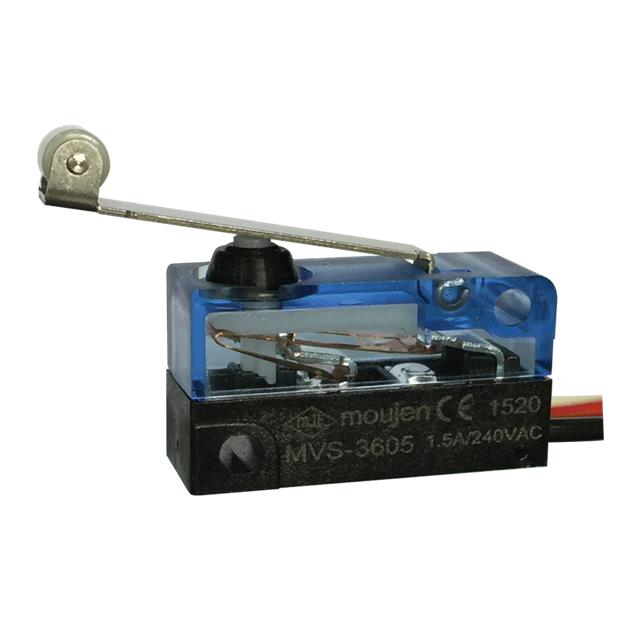

MVS-3605-NO

MVS-3605-NO is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SWITCH SNP ACT SPST-NO 1.5A 230V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MVS-3605-NO

• Description：SWITCH SNP ACT SPST-NO 1.5A 230V
• Series：MVS-36
• Mfr：Moujen
• Package：Bulk
• Circuit：SPST-NO
• Switch Function：On-Mom
• Current Rating (Amps)：1.5 (AC), 500mA (DC)
• Voltage Rating - AC：230 V
• Actuator Type：Lever, Roller
• Mounting Type：Chassis Mount
• Termination Style：Cable Leads
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Force：74gf
• Release Force：56gf
• Pretravel：0.080" (2.0mm)
• Differential Travel：0.035" (0.9mm)
• Overtravel：0.161" (4.1mm)
• Operating Temperature：-40°C ~ 80°C
• Voltage Rating - DC：60 V
