MXTOBFI32K768B

Crystals Overview

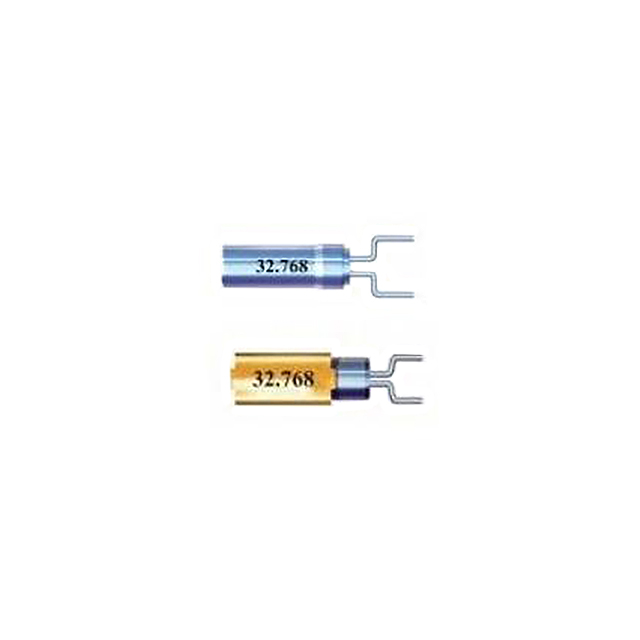

The MXTOBFI32K768B is a quartz crystal oscillator manufactured by Meritek Electronics Corporation. It operates at a nominal frequency of 32.768 kHz, utilizing a tuning fork resonator design suitable for precision timing applications. The component features a cylindrical can package with radial mounting configuration. Electrical specifications include a load capacitance of 12.5 pF and a maximum motional resistance of 50 kOhms. The device maintains a frequency tolerance of ±20 ppm, ensuring stable performance across operational conditions.

Crystals Feature Summary

• Tuning fork quartz crystal resonator design
• Cylindrical can package with radial leads
• Precision frequency stability for clock generation

Crystals Applications

• Real-time clock circuits
• Microcontroller system clocks
• Low-power embedded timing references

Crystals Procurement Notes

Verify the specific suffix 'B' against the official Meritek datasheet to confirm exact mechanical dimensions and electrical tolerances. Ensure the supplier provides traceability documentation matching the manufacturer's part number. Confirm RoHS compliance status through the provided certificate of conformity. Cross-reference the package type to ensure compatibility with the intended PCB footprint and assembly process requirements.

Crystals Selection Notes

Select this component when a low-frequency, high-stability reference is required for timekeeping functions. The 32.768 kHz frequency allows for efficient binary division in digital counters. Consider the 12.5 pF load capacitance requirement when designing the oscillator circuit to ensure accurate frequency output. Evaluate the 50 kOhm maximum resistance limit against the oscillator amplifier capabilities to guarantee reliable startup and sustained oscillation.

Crystals Part Context

This part belongs to the Meritek MXTO series of passive components, specifically focusing on quartz crystals. Meritek Electronics Corporation produces a range of circuit protection devices, semiconductors, and passive components. This specific model serves as a fundamental frequency reference within their portfolio of timing solutions, distinct from their higher-frequency surface mount crystal offerings.

Crystals Replacement Considerations

The MXTPBFI32K768 is a related variant within the same product family. Verify pinout compatibility and electrical parameters before substitution. No other direct substitute part numbers are publicly confirmed in available documentation.
