NBPDANN060MGUNV

Pressure Sensors Transducers Overview

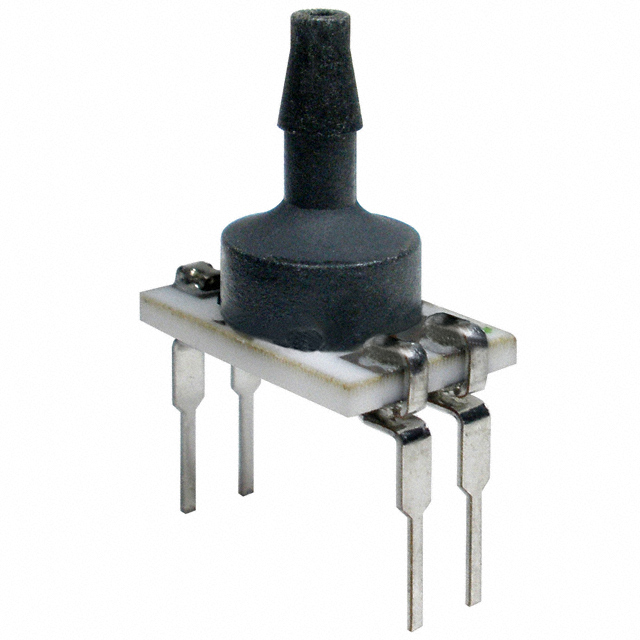

The NBPDANN060MGUNV is a Honeywell NBP series absolute pressure sensor designed for board-level integration. It features an analog voltage output ranging from 0mV to 28.5mV when powered by 5V, with a supply voltage range of 1.8V to 12V. The device measures a working pressure of 0.87 PSI (6.0 kPa) and withstands a maximum pressure of 6.0 PSI (41.37 kPa). It utilizes a 4-SMD, J-lead package with a top port configuration and a 0.75-inch tube size. The sensor offers ±0.25% accuracy and operates within a temperature range of -40°C to 125°C.

Pressure Sensors Transducers Feature Summary

• Integrated signal conditioning provides amplified analog voltage output
• Temperature compensated for stable performance across wide operating ranges
• Compact surface-mount package facilitates automated PCB assembly

Pressure Sensors Transducers Applications

• Medical equipment gas flow monitoring
• HVAC system pressure sensing
• Industrial process control instrumentation

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix against official Honeywell documentation to confirm exact electrical characteristics and packaging details. Ensure compatibility with target board layout dimensions and thermal requirements. Confirm RoHS compliance status through current manufacturer declarations prior to procurement.

Pressure Sensors Transducers Selection Notes

Select this component for applications requiring low-pressure absolute measurement with analog interface simplicity. Consider the narrow output span relative to supply voltage when designing signal conditioning circuits. Evaluate the J-lead package constraints for reflow soldering profiles and mechanical stress relief in final assemblies.

Pressure Sensors Transducers Part Context

This part belongs to the Honeywell NBP (Narrow Band Pressure) family, which focuses on cost-effective, high-volume pressure sensing solutions. The NBP series typically employs silicon piezoresistive technology housed in compact packages suitable for consumer and industrial electronics where space and cost are critical factors.

Pressure Sensors Transducers Replacement Considerations

Consult official Honeywell cross-reference guides for verified substitutes. Generic equivalents may not match the specific accuracy, temperature compensation, or output linearity characteristics defined in the original datasheet.
