NBPMPNS060PAUNV

Pressure Sensors Transducers Overview

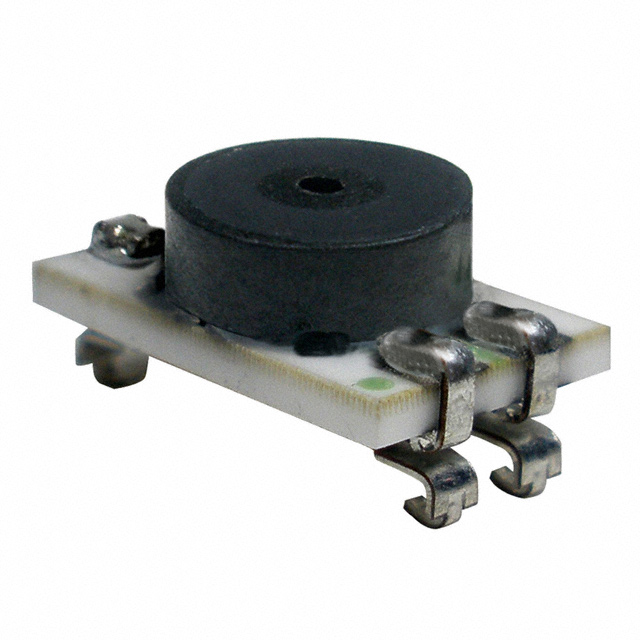

The Honeywell NBPMPNS060PAUNV is a board mount pressure sensor from the NBP Series, designed for uncompensated and unamplified applications. It measures absolute pressure with an internal vacuum reference, providing a millivolt analog output proportional to pressure variations. The device features a piezoresistive sensing element housed in a rectangular surface-mount package measuring 11.5 mm in length, 7 mm in width, and 3.84 mm in height. It operates within a temperature range of -40 °C to 125 °C and supports a maximum supply voltage of 12 V. The sensor has a sensitivity of 26 mV/V and a maximum accuracy of 0.25%, with a 7 mV/V offset.

Pressure Sensors Transducers Feature Summary

• Uncompensated and unamplified design allowing for custom algorithm-based calibration and amplification
• Internal vacuum reference for accurate absolute pressure measurement
• Surface-mount construction suitable for automated assembly processes
• Piezoresistive sensing technology for high-resolution signal output

Pressure Sensors Transducers Applications

• Non-corrosive, non-ionic gas monitoring such as air and dry gases
• Non-corrosive, non-ionic liquid pressure detection
• Custom compensation and calibration systems requiring basic pressure data
• Board-integrated pressure sensing in compact electronic devices

Pressure Sensors Transducers Procurement Notes

Verify the specific part number suffix against official Honeywell documentation to confirm pressure range and package configuration. Ensure compatibility with your system's voltage limits and temperature requirements. Confirm availability status as distribution channels may vary. Request samples early to validate performance in your specific application environment before full-scale production integration.

Pressure Sensors Transducers Selection Notes

Select this component when uncompensated millivolt output is acceptable and custom signal conditioning is planned. Consider the absolute pressure reference requirement versus gauge options. Evaluate the surface-mount footprint constraints against your PCB layout. Verify that the operating temperature range meets your environmental conditions. Assess whether the specified accuracy and sensitivity align with your system's resolution needs.

Pressure Sensors Transducers Part Context

The NBPMPNS060PAUNV belongs to Honeywell’s NBP Series of basic board mount pressure sensors. This series targets customers seeking cost-effective solutions without integrated signal processing. The components are manufactured under ISO 9001 standards, ensuring consistent quality. The series offers various package styles and mounting options to facilitate integration into diverse device designs.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Honeywell directly for cross-reference information or alternative models within the NBP series that match your specific pressure range and interface requirements.
