NTNS2K1P021ZTCG

Single FETs, MOSFETs Overview

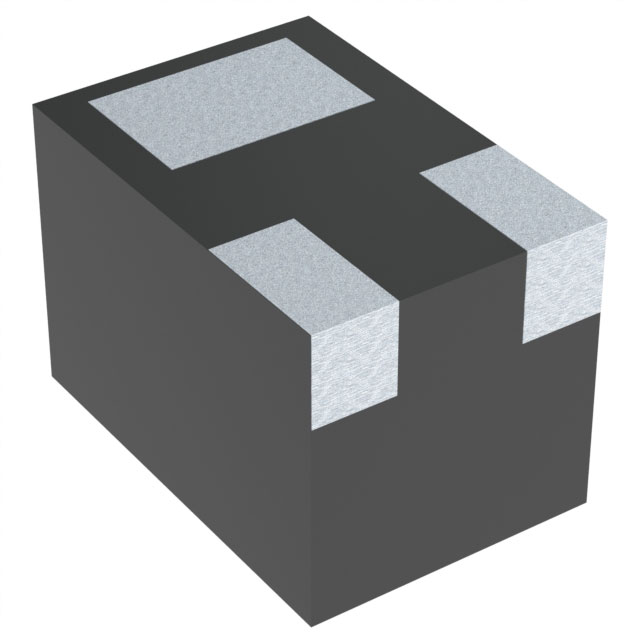

The NTNS2K1P021ZTCG is a single P-channel enhancement-mode MOSFET manufactured by onsemi. It features a drain-source breakdown voltage (Vds) of 20 V and a continuous drain current (Id) of 127 mA at ambient temperature. The device dissipates up to 125 mW of power and operates within a junction temperature range of -55°C to +150°C. It is housed in a compact 3-XDFN surface-mount package with dimensions of 0.42x0.62 mm, designed for small-signal load switching applications.

Single FETs, MOSFETs Feature Summary

• Single P-channel enhancement mode configuration
• Compact 3-XDFN surface-mount packaging
• High-temperature operation capability up to 150°C

Single FETs, MOSFETs Applications

• Small signal load switching
• Automotive electronic control systems
• Vehicle body control modules

Single FETs, MOSFETs Procurement Notes

Verify the specific datasheet version for accurate electrical characteristics and thermal resistance values. Confirm that the 3-XDFN footprint matches your PCB design constraints. Ensure compliance with AEC-Q100 requirements if deploying in automotive environments. Check for any specific ordering suffixes that may affect availability or packaging format.

Single FETs, MOSFETs Selection Notes

Select this component for low-current P-channel switching tasks where space is limited. The 20V rating suits low-voltage logic interfaces. Consider the 127mA current limit for load management. The wide operating temperature range supports harsh environment deployment. Evaluate thermal dissipation needs against the 125mW power rating.

Single FETs, MOSFETs Part Context

This part belongs to onsemi's NTN series of intelligent power and sensing technologies. The series targets automotive and industrial markets requiring robust semiconductor solutions. The component integrates standard MOSFET functionality within a miniaturized form factor suitable for modern electronics.

Single FETs, MOSFETs Replacement Considerations

Consult official substitution guides for compatible P-channel MOSFETs with similar 20V ratings and XDFN packages. Verify pinout compatibility before swapping. Ensure equivalent thermal and electrical performance metrics are met.
