O 38,880-JTP75HC-J-K-3,3-LF

Oscillators Overview

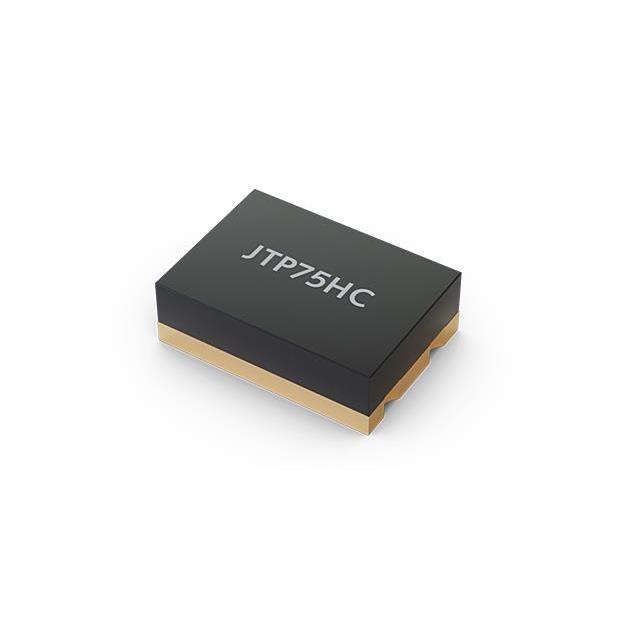

The O 38,880-JTP75HC-J-K-3,3-LF is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Jauch Quartz. It operates at a nominal frequency of 38.88 MHz with an HCMOS output signal. The device requires a 3.3V supply voltage and draws a maximum current of 10mA. It features a surface-mount package in the 8-SMD, No Lead configuration. The unit supports an extended operating temperature range from -40°C to +85°C.

Oscillators Feature Summary

• Integrated temperature compensation for stable frequency performance across varying thermal conditions
• HCMOS digital output interface suitable for direct logic integration
• Compact surface-mount construction designed for automated assembly processes

Oscillators Applications

• Telecommunications base station timing circuits
• Industrial control system clock generation
• Portable electronic devices requiring precise frequency references

Oscillators Procurement Notes

Verify that the specific part number matches the required frequency and output type before procurement. Confirm that the supplier provides official documentation confirming RoHS compliance and REACH status. Ensure the ordering suffix corresponds to the desired packaging format, such as tape and reel or cut tape, to align with manufacturing requirements.

Oscillators Selection Notes

Select this component when a stable 38.88 MHz reference is needed within a 3.3V system. Consider the 10mA current consumption against power budget constraints. Evaluate the 8-SMD footprint against available PCB space. Verify that the -40°C to +85°C range meets the environmental demands of the target application.

Oscillators Part Context

This oscillator belongs to the JTP75HC series from Jauch Quartz, which focuses on high-performance TCXOs. The series utilizes HCMSO technology to deliver low phase noise and high stability. This specific model represents a standard frequency option within the broader family of industrial-grade oscillators.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching electrical parameters including frequency, supply voltage, output type, and package dimensions.
