OZKIDLJANF-0.032768

Oscillators Overview

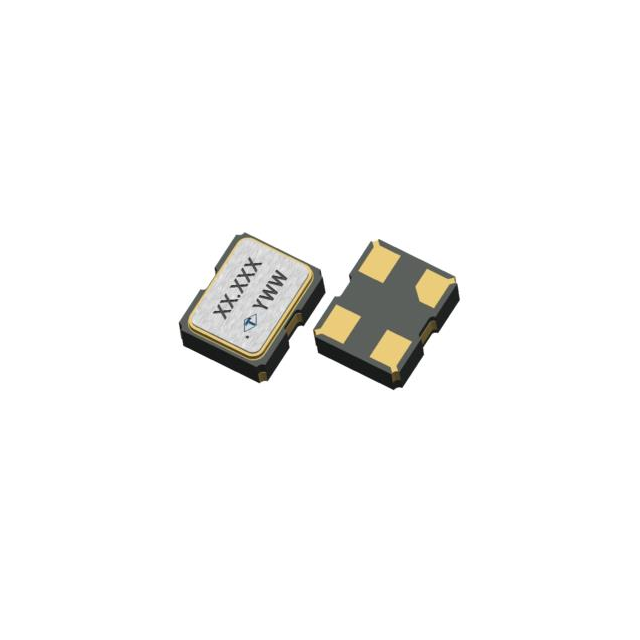

The OZKIDLJANF-0.032768 is a 32.768 kHz CMOS standard crystal oscillator manufactured by Taitien. It operates on a 1.8V supply voltage and features an enable/disable control function. The device utilizes a fundamental quartz crystal resonator housed in a compact 4-SMD, no lead package with dimensions of 2.5mm x 2.0mm. It provides a frequency stability of ±25ppm and supports a maximum operating current of 8mA. The unit is designed for through-hole or surface-mount integration within low-power electronic systems.

Oscillators Feature Summary

• Integrated enable and disable functionality for power management
• CMOS output signal generation at 32.768 kHz nominal frequency
• Ultra-low power consumption suitable for battery-operated devices
• Compact surface-mount package design for space-constrained applications

Oscillators Applications

• Real-time clock (RTC) circuits
• Wearable electronic devices
• Low-power IoT modules
• Portable consumer electronics

Oscillators Procurement Notes

Verify the specific ordering suffix to confirm the exact package variant and tape/reel specifications required for your assembly line. Ensure the 1.8V supply rail matches the component's electrical requirements before procurement. Confirm RoHS compliance status if environmental regulations apply to your manufacturing process. Cross-reference the manufacturer part number with distributor catalogs to avoid confusion with similar series components.

Oscillators Selection Notes

Select this component when a precise 32.768 kHz timing source is required for real-time keeping functions. The 1.8V operating voltage makes it suitable for modern low-voltage logic families. Consider the ±25ppm stability requirement against your system's timing accuracy needs. The enable/disable feature allows for dynamic power savings in standby modes, optimizing overall system efficiency.

Oscillators Part Context

This oscillator belongs to Taitien's ultra-low power quartz oscillator family, specifically designed for Internet of Things (IoT) and portable applications. It complements the company's broader range of frequency control products, including standard crystals and higher-frequency oscillators. The 32.768 kHz frequency is industry-standard for dividing down to one-second intervals in digital timekeeping systems.

Oscillators Replacement Considerations

Direct substitutes include other 32.768 kHz CMOS oscillators with identical 1.8V operation and 4-SMD no-lead packaging. Verify pin compatibility and enable/disable logic levels when replacing. Similar series from Taitien may offer alternative voltage options or stability ratings.
