P5001NL

Pulse Transformers Overview

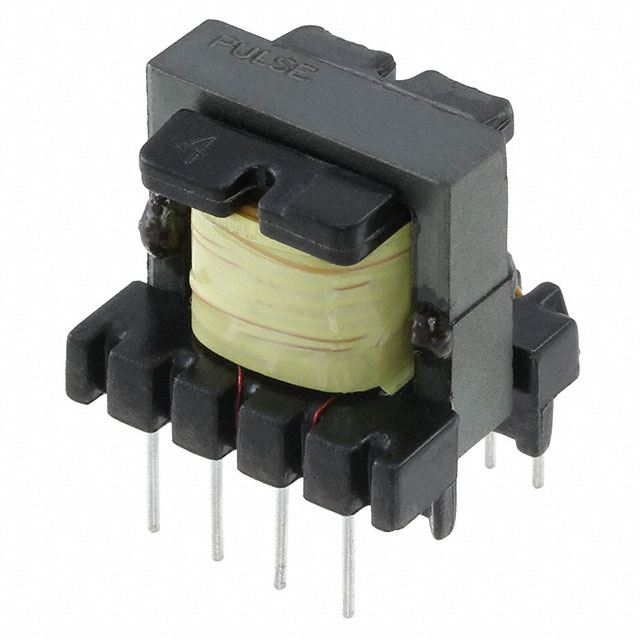

The P5001NL is a pulse transformer manufactured by Pulse Electronics, designed for signal transmission applications. It features a 1:0.1:0.1 turns ratio and utilizes through-hole mounting technology. The component is classified under the power transformer category within the manufacturer's product line. It supports standard industrial operating conditions and is available in lead-free configurations compliant with environmental regulations.

Pulse Transformers Feature Summary

• Provides electrical isolation with a specific 1:0.1:0.1 voltage transformation ratio
• Designed for robust through-hole integration into printed circuit boards
• Constructed to meet RoHS compliance standards for environmental safety

Pulse Transformers Applications

• Signal coupling in electronic circuits requiring voltage step-down
• Isolation barriers in power supply feedback loops
• Interface modules in industrial control systems

Pulse Transformers Procurement Notes

Verify the specific datasheet revision and manufacturing origin when sourcing this component. Confirm that the through-hole package dimensions align with the target PCB footprint. Ensure that the supplier provides documentation confirming RoHS compliance status, as regulatory requirements may vary by region. Cross-reference the manufacturer part number with authorized distributor catalogs to ensure authenticity and traceability of the batch.

Pulse Transformers Selection Notes

Select this component when a precise 1:0.1:0.1 transformation ratio is required for signal conditioning. The through-hole form factor is suitable for applications prioritizing mechanical stability over high-density surface mount layouts. Evaluate the thermal performance and insulation ratings against the specific operational environment. Consider the physical size constraints of the assembly to accommodate the leaded package geometry effectively.

Pulse Transformers Part Context

This component belongs to the Pulse Electronics power transformer portfolio, which focuses on magnetic components for signal integrity and power management. The P5001NL serves as a specialized solution for applications needing defined impedance matching and galvanic isolation. It complements other discrete transformers in the lineup by offering a fixed ratio configuration optimized for specific circuit topologies.
