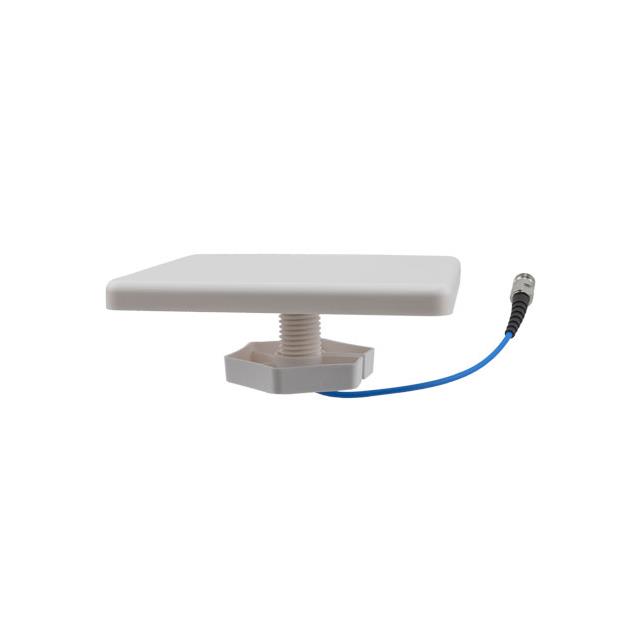

PE51251

$102.54

Description：Indoor DAS Ceiling Omni Antenna,
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:f608d86da8f4 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE51251 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is Indoor DAS Ceiling Omni Antenna,. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51251

Description：Indoor DAS Ceiling Omni Antenna,
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：2.449GHz
Frequency Range：698MHz ~ 4.2GHz
Antenna Type：Module
Number of Bands：1
VSWR：1.8
Return Loss：-
Gain：5dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.590" (14.98mm)
Applications：5G, CDMA, GSM, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT
Power - Max：50 W

Antennas RF datasheet and documents for PE51251

PE51251

Antennas RF Overview

The Pasternack PE51251 is an indoor Distributed Antenna System (DAS) ceiling omnidirectional antenna designed for wireless communication infrastructure. It operates within a frequency range of 698 MHz to 4200 MHz and features a Type N female connector interface. The unit provides a gain of 5 dBi and is engineered for low Passive Intermodulation (PIM) performance, ensuring signal integrity in high-density network environments.

Antennas RF Feature Summary

Ceiling-mountable omnidirectional radiation pattern for comprehensive indoor coverage
Optimized for low passive intermodulation distortion in active RF networks
Broadband operational capability spanning sub-1 GHz to multi-GHz bands

Antennas RF Applications

Indoor Distributed Antenna Systems (DAS)
Commercial building wireless coverage enhancement
Public safety radio system integration

Antennas RF Procurement Notes

Verify the specific regulatory compliance certifications required for your region before procurement. Confirm that the installation environment supports the physical mounting requirements of a ceiling-mounted antenna. Ensure compatibility with existing cabling and connector types to maintain system integrity.

Antennas RF Selection Notes

Select this model when broadband coverage across multiple cellular and public safety bands is required in indoor settings. The 5 dBi gain offers a balance between coverage area and signal strength. Consider the Type N connector for standard coaxial cable interfacing in professional RF installations.

Antennas RF Part Context

This component belongs to Pasternack's portfolio of antennas tailored for indoor wireless infrastructure. It addresses the need for reliable signal distribution in complex building layouts where external signals may be weak or obstructed by structural materials.
