PE51OM1051

$100.77

Description：ANTENNA 2.4-2.5GHz, 12 DBI, N
Series：-
Mfr：Pasternack
Package：Case

SKU:3e4fcbd9f04a Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE51OM1051 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is ANTENNA 2.4-2.5GHz, 12 DBI, N. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51OM1051

Description：ANTENNA 2.4-2.5GHz, 12 DBI, N
Series：-
Mfr：Pasternack
Package：Case
RF Family/Standard：Cellular
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：12dBi
Features：-
Termination：N Type Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：1.858" (47.20mm)
Applications：General Purpose
Power - Max：100 W

Antennas RF datasheet and documents for PE51OM1051

PE51OM1051

Antennas RF Overview

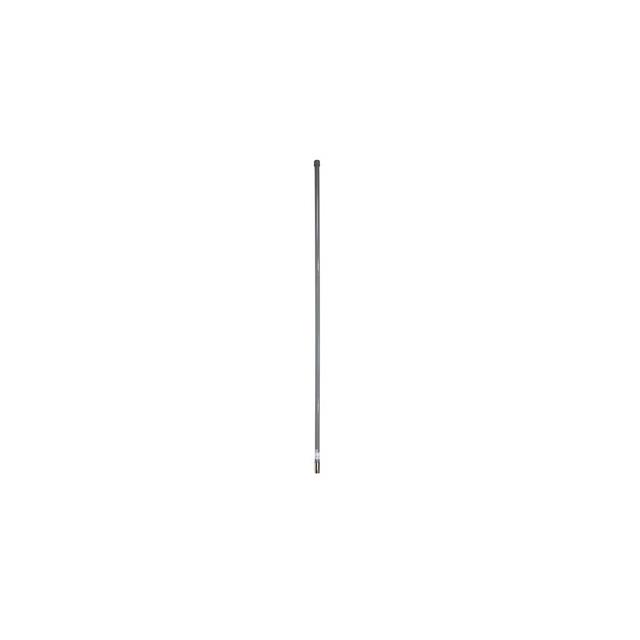

The PE51OM1051 is a 2.4-2.5 GHz omnidirectional fiberglass antenna manufactured by Pasternack. It features an N male connector and provides 12 dBi gain. The unit operates within the specified frequency band with standard coaxial interface requirements.

Antennas RF Feature Summary

Omnidirectional radiation pattern for uniform coverage
Fiberglass construction for environmental durability
N male connector interface for secure attachment

Antennas RF Applications

Wireless LAN infrastructure
Industrial wireless sensor networks
Point-to-multipoint communication links

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and impedance specifications. Ensure the N male connector type matches the receiving equipment interface. Confirm regulatory compliance status for the intended deployment region before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when 12 dBi gain is required for the 2.4-2.5 GHz band. The N male connector dictates mating compatibility with standard coaxial systems. Fiberglass housing suitability depends on outdoor or harsh environment exposure requirements.

Antennas RF Part Context

This component belongs to Pasternack's RF antenna product line, designed for reliable signal transmission in wireless applications. It serves as a passive radiating element within larger RF system architectures requiring directional or omnidirectional coverage solutions.
