PE51PD1008

Antennas RF Overview

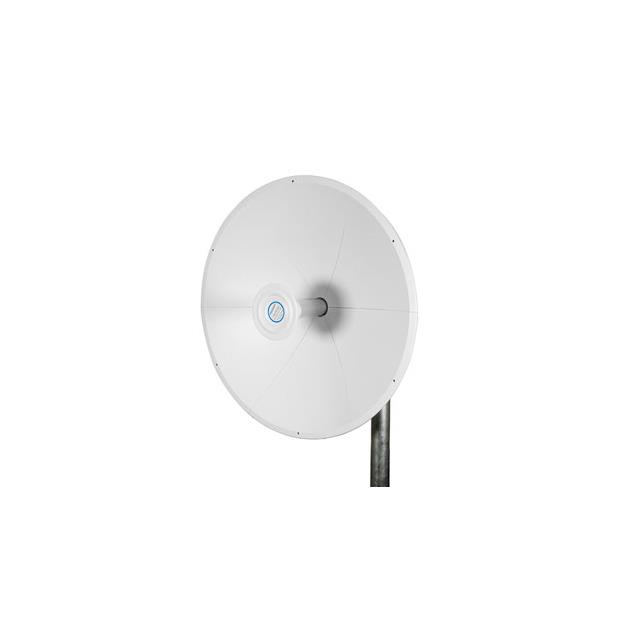

The Pasternack PE51PD1008 is a collapsible parabolic antenna designed for the 4900 MHz to 7125 MHz frequency range. It features a 30 dBi gain and supports 2x2 MIMO configurations. The unit includes two RP-SMA female connectors and utilizes a bracket mount installation method. This single-band directional antenna provides high-gain performance suitable for point-to-point wireless links within its specified operational bandwidth.

Antennas RF Feature Summary

• Collapsible parabolic dish design for portability
• Supports 2x2 MIMO signal processing
• High gain directional radiation pattern

Antennas RF Applications

• Point-to-point wireless communication links
• 5G fixed wireless access deployments
• Wi-Fi bridge installations

Antennas RF Procurement Notes

Verify the specific datasheet version with the manufacturer to confirm current mechanical dimensions and connector specifications. Ensure compatibility with existing mounting hardware and RF cabling interfaces before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when high gain is required in the 4.9 GHz to 7.1 GHz spectrum. Consider the collapsible form factor for transport requirements. Verify that the RP-SMA interface matches the connected radio equipment ports.

Antennas RF Part Context

This component belongs to Pasternack's directional antenna portfolio, specifically engineered for microwave frequency applications. It serves as a specialized solution for long-range wireless transmission needs requiring focused signal directionality.

Antennas RF Replacement Considerations

The PE51PD1007 is a similar parabolic antenna from the same series but offers lower gain and uses a one-foot configuration instead of the two-foot collapsible design found in the PE51PD1008.
