PE7030-6

Attenuators Overview

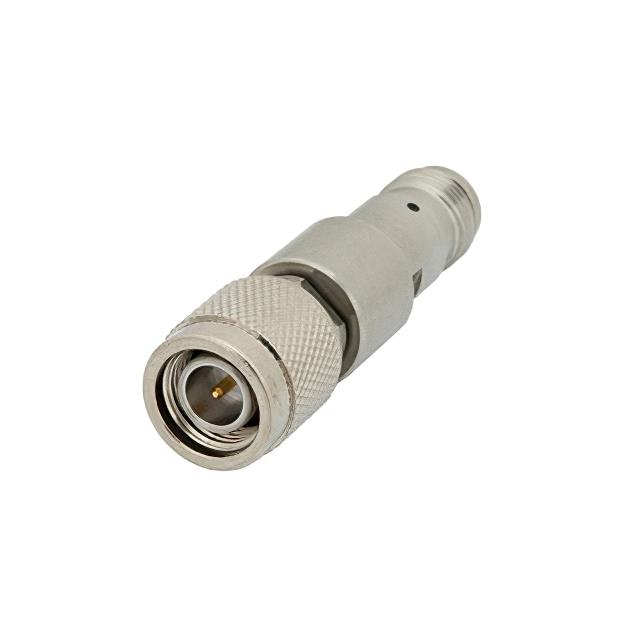

The Pasternack PE7030-6 is a fixed RF attenuator designed for high-frequency applications. It provides a precise attenuation value of 6 dB with a nominal impedance of 50 Ohms. The component utilizes TNC connectors, featuring a male interface on one end and a female interface on the other. It is rated to operate at frequencies up to 18 GHz. The device supports a maximum power handling capacity of 2 Watts at the stated attenuation level. Construction involves a passivated stainless steel body to ensure durability and consistent performance in demanding environments.

Attenuators Feature Summary

• Provides fixed 6 dB signal attenuation
• Operates effectively up to 18 GHz frequency range
• Features TNC male to TNC female connector configuration
• Constructed with passivated stainless steel housing

Attenuators Applications

• RF signal level reduction in microwave circuits
• Impedance matching between 50 Ohm systems
• Test and measurement equipment signal conditioning
• Communication system power management

Attenuators Procurement Notes

Verify the specific model designation PE7030-6 against official Pasternack documentation to confirm the 6 dB attenuation rating and 18 GHz frequency limit. Ensure that the required power handling capability of 2 Watts aligns with your system's operational parameters. Confirm that the TNC male-to-female connector configuration matches your existing infrastructure requirements before finalizing procurement decisions.

Attenuators Selection Notes

Select this component when a fixed 6 dB attenuation is required within a 50 Ohm system operating up to 18 GHz. Consider the TNC connector type for compatibility with standard coaxial interfaces. Evaluate the 2 Watt power rating against peak signal levels to prevent damage. The stainless steel construction offers robustness suitable for industrial or laboratory environments where mechanical stability is essential for reliable RF performance.

Attenuators Part Context

This part belongs to the Pasternack fixed attenuator series, specifically utilizing TNC interfaces. It complements other models like the PE7030-3, which offers 3 dB attenuation. These components are categorized under RF connector accessories and microwave attenuators. They serve as passive devices for controlling signal strength without introducing significant distortion, fitting into broader RF interconnect ecosystems managed by Pasternack Enterprises.

Attenuators Replacement Considerations

Direct substitutes include the PE7030-3 for different attenuation needs within the same series. Verify connector gender and impedance matching when considering alternative brands. Ensure replacement parts maintain the 18 GHz frequency rating and 2 Watt power handling capacity to preserve system integrity.
