PE9854B-15

Antennas RF Overview

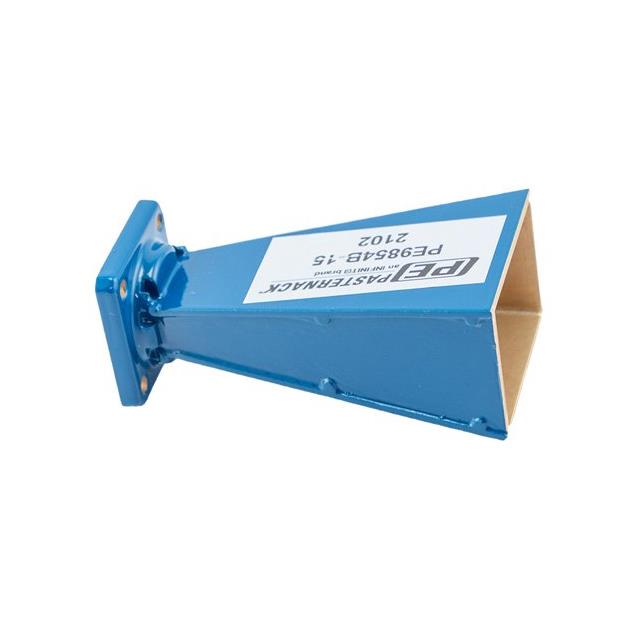

The PE9854B-15 is a WR-62 waveguide standard gain horn antenna from the Pasternack Proline series. It operates within a frequency range of 12.4 GHz to 18 GHz. The unit provides a nominal gain of 15 dBi. It features an SMA female connector for interface purposes. The design includes a square cover flange for mounting stability. This component is engineered for high-performance directional applications in microwave systems.

Antennas RF Feature Summary

• Standard gain horn antenna configuration optimized for WR-62 waveguide dimensions
• SMA female connector interface for signal transmission and reception
• Square cover flange design ensuring secure mechanical mounting

Antennas RF Applications

• Microwave test and measurement setups
• Radar system development and testing
• Satellite communication link analysis

Antennas RF Procurement Notes

Verify the specific model suffix against official documentation to confirm connector type and flange style. Ensure the operating frequency range aligns with system requirements. Confirm physical dimensions match available mounting infrastructure. Cross-reference datasheet specifications for impedance and VSWR limits before integration into critical RF paths.

Antennas RF Selection Notes

Select this model when a fixed 15 dBi gain is required within the 12.4 GHz to 18 GHz band. Consider the WR-62 waveguide size constraints for physical installation space. Evaluate the SMA connector compatibility with existing cable assemblies. Assess environmental sealing needs if outdoor deployment is planned, as standard models may lack weatherproofing.

Antennas RF Part Context

This antenna belongs to the Pasternack Proline series, which focuses on reliable waveguide components. The WR-62 designation indicates the specific waveguide size compatible with X-band frequencies. Standard gain horns provide predictable radiation patterns compared to high-gain variants, making them suitable for calibration and broad-beam applications.

Antennas RF Replacement Considerations

The PE9854B-20 offers similar construction but provides 20 dBi gain instead of 15 dBi. Verify that the increased gain does not narrow the beamwidth beyond application requirements. Both units share the WR-62 waveguide interface and SMA connector type.
