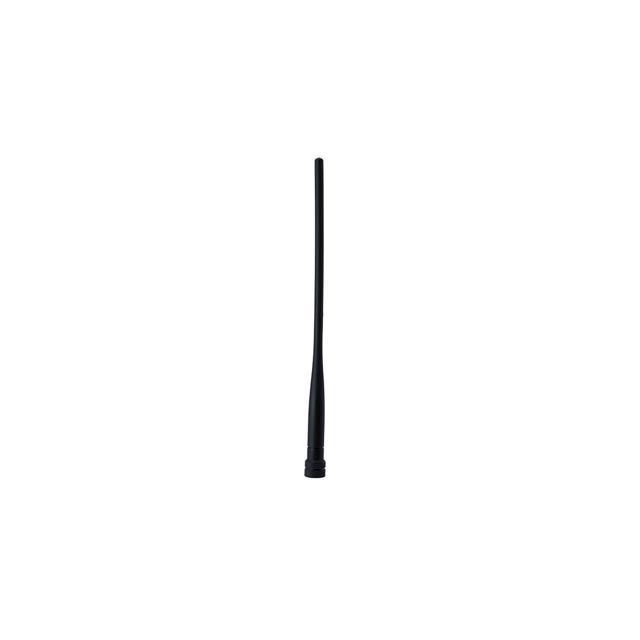

PEANRBD1023 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 66-88 MHz Rubber Duck Antenna, 1. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PEANRBD1023
- Description：66-88 MHz Rubber Duck Antenna, 1
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：General ISM
- Frequency Group：SHF (f > 4GHz)
- Frequency (Center/Band)：77GHz
- Frequency Range：66GHz ~ 88GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：1.8dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Height (Max)：8.400" (213.36mm)
- Applications：General Purpose
- Power - Max：50 W
Antennas RF datasheet and documents for PEANRBD1023
Antennas RF Overview
The Pasternack PEANRBD1023 is a single-band rubber duck antenna engineered for operation within the 66 to 88 MHz frequency range. It provides a gain of 1.8 dBi and utilizes an SMA male connector for interface connectivity. The device features vertical polarization, ensuring consistent signal transmission characteristics suitable for standard RF applications requiring reliable performance in this specific band.
Antennas RF Feature Summary
- Single-band operation optimized for the 66-88 MHz spectrum
- Vertical polarization design for stable signal alignment
- SMA male connector interface for secure attachment
Antennas RF Applications
- VHF communication systems
- Marine radio installations
- General-purpose RF signal transmission
Antennas RF Procurement Notes
Verify the exact model designation against official Pasternack documentation to ensure compatibility with system requirements. Confirm that the SMA male connector type matches existing hardware interfaces. Review technical specifications for environmental ratings if outdoor deployment is intended. Ensure frequency coverage aligns with operational needs before procurement.
Antennas RF Selection Notes
Select this antenna when a dedicated solution for the 66-88 MHz band is required. Consider the 1.8 dBi gain level relative to other available options for specific range requirements. Evaluate the physical form factor of the rubber duck style against space constraints. Verify that vertical polarization meets the orientation requirements of the receiving equipment.
Antennas RF Part Context
This component belongs to Pasternack's portfolio of RF antennas designed for reliable signal transmission. The product line includes various configurations for different frequency bands and connector types. Pasternack focuses on providing comprehensive solutions for communication systems and general-purpose RF applications.
Antennas RF Replacement Considerations
Consult official Pasternack resources for verified substitute part numbers. Cross-reference specifications such as frequency range, gain, and connector type when evaluating alternatives. Ensure any replacement maintains compatibility with existing mounting and connection infrastructure.
