PIM100M1004A1

Fixed Inductors Overview

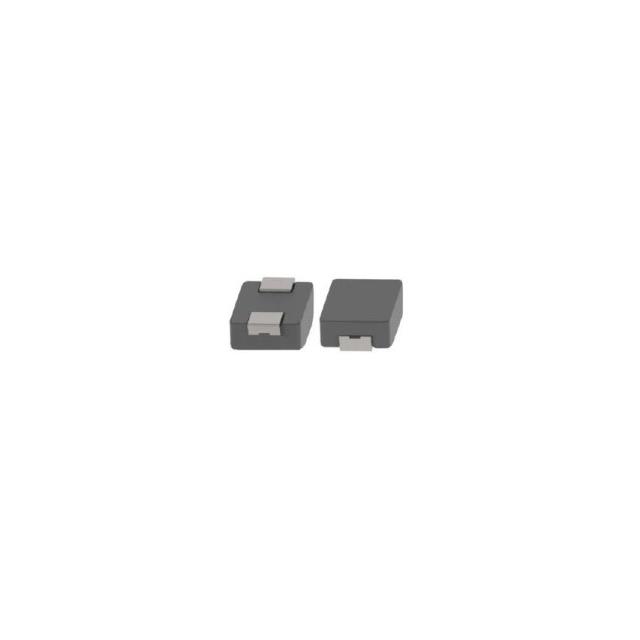

The PIM100M1004A1 is a shielded molded fixed inductor manufactured by Meritek Electronics. It features a metal composite core and is designed for surface mount applications. The component has a nominal inductance of 10 µH with a tolerance of ±20%. It supports a high current rating of 7.5 A and exhibits a maximum DC resistance (DCR) of 30 mΩ. The physical dimensions are 11.00 mm x 10.00 mm, with a maximum seated height of 4.80 mm.

Fixed Inductors Feature Summary

• Shielded molded construction to minimize electromagnetic interference
• Metal composite core material for stable performance
• High current handling capability suitable for power circuits

Fixed Inductors Applications

• Power supply output filtering
• DC-DC converter input/output stages
• General purpose signal filtering in electronic devices

Fixed Inductors Procurement Notes

Verify the specific suffix 'A1' against the manufacturer's official datasheet to confirm pinout and packaging details. Ensure the requested quantity matches standard reel sizes if applicable. Confirm RoHS compliance status through the latest product documentation provided by Meritek Electronics before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor with high current capacity is required. The 10 µH value and 7.5 A rating make it suitable for moderate power applications. Consider the 0805 equivalent footprint size constraints during PCB layout design to ensure adequate clearance and thermal management.

Fixed Inductors Part Context

This part belongs to Meritek's PIM series of fixed inductors. These components are characterized by their shielded design and use of metal composite cores. The series offers various inductance values and current ratings to support different power electronics requirements while maintaining a small form factor.

Fixed Inductors Replacement Considerations

Check for direct substitutes with identical 10 µH inductance, 7.5 A current rating, and 30 mΩ DCR. Verify that any replacement maintains the same 11.00 mm x 10.00 mm footprint and shielded construction to ensure compatibility with existing PCB layouts.
