PLDS3080H

Single Diodes Overview

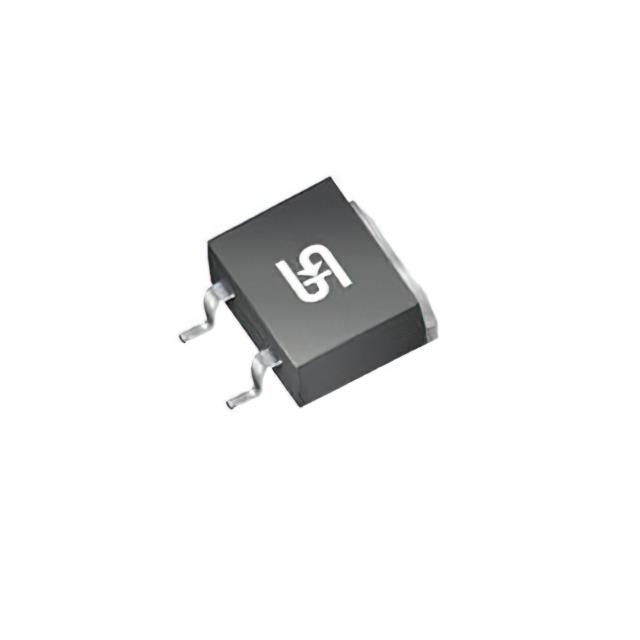

The PLDS3080H is a surface mount automotive standard rectifier manufactured by Taiwan Semiconductor. It features a single diode configuration housed in a D2PAK-3 package. The device supports a maximum repetitive peak reverse voltage of 800 V and an average forward rectified current of 30 A. Key electrical parameters include a maximum non-repetitive peak surge current of 328 A, a typical forward voltage of 1.04 V at rated current, and a maximum reverse current of 10 uA. It operates within a junction temperature range of -55 C to +150 C and holds AEC-Q101 qualification for automotive reliability.

Single Diodes Feature Summary

• Automotive-grade reliability certified under the AEC-Q101 standard
• High thermal performance enabled by the exposed pad D2PAK-3 surface mount package
• Robust surge current handling capability suitable for demanding power applications

Single Diodes Applications

• Automotive battery protection circuits
• DC-to-DC converter output rectification
• General-purpose power supply freewheeling diodes

Single Diodes Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact packaging options such as reel or cut tape quantities. Confirm RoHS compliance status and lead times directly with authorized distributors prior to procurement. Ensure the component matches the required voltage and current ratings for the target application environment.

Single Diodes Selection Notes

Select this component when an 800 V blocking capability is required alongside a 30 A continuous current rating in a compact surface mount form factor. The D2PAK-3 package provides superior heat dissipation compared to smaller packages. Verify that the 1.04 V forward voltage drop aligns with system efficiency targets and that the AEC-Q101 qualification meets automotive design requirements.

Single Diodes Part Context

This part belongs to the PLDS series of automotive standard rectifiers from Taiwan Semiconductor. The series is designed to meet the rigorous reliability standards of the automotive industry. It serves as a high-current solution for power management modules where space constraints necessitate surface mount technology while maintaining high voltage withstand capabilities.

Single Diodes Replacement Considerations

Cross-reference with other 30 A, 800 V automotive rectifiers in the D2PAK-3 package. Verify pinout compatibility and thermal resistance characteristics before substitution. Ensure any alternative part also holds AEC-Q101 certification if used in automotive applications.
