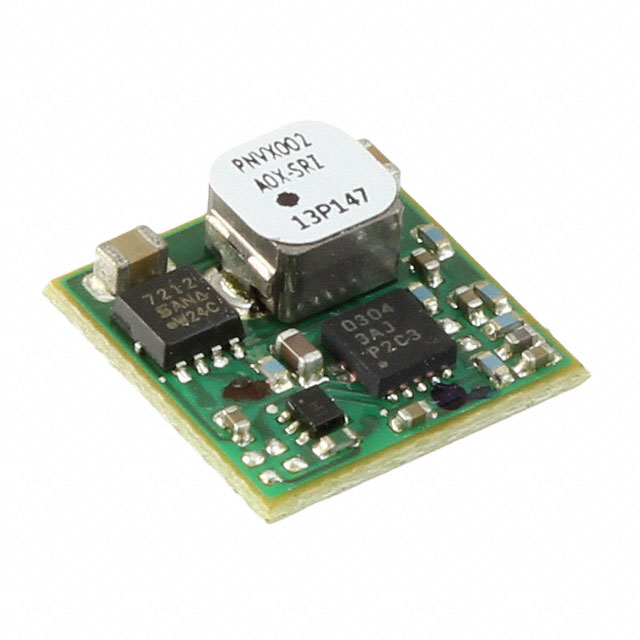

PNVX002A0X3-SRZ

PNVX002A0X3-SRZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 0.6-5.5V 11W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PNVX002A0X3-SRZ

• Description：DC DC CONVERTER 0.6-5.5V 11W
• Series：PicoDLynx™
• Mfr：OmniOn Power™
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：3V
• Voltage - Input (Max)：14V
• Voltage - Output 1：0.6 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：11 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：93.80%
• Mounting Type：Surface Mount
• Package / Case：17-SMD Module
• Size / Dimension：0.45" L x 0.45" W x 0.18" H (12.2mm x 12.2mm x 4.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for PNVX002A0X3-SRZ
