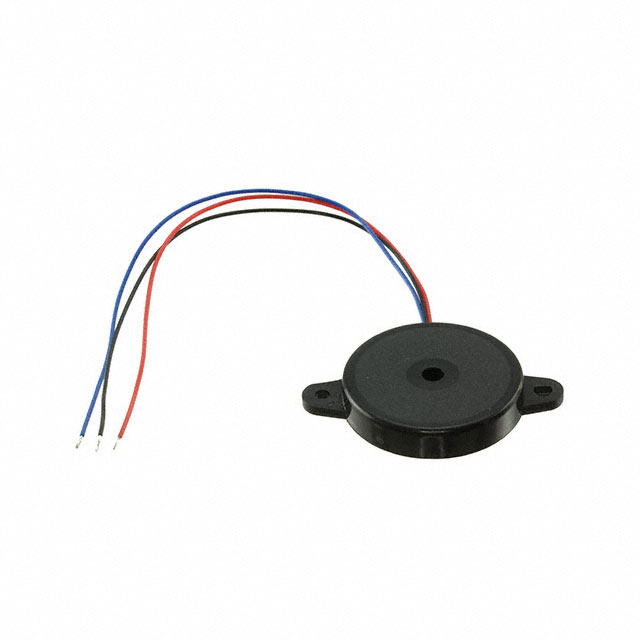

PT-2045FWQ

$1.67

Description：BUZZER PIEZO 12V 24MM FLANGE
Series：PT
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:ac192ab28b2f Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BUZZER PIEZO 12V 24MM FLANGE
Series：PT
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Transducer, Externally Driven
Input Type：DC
Frequency：4.5kHz
Technology：Piezo (with Feedback)
Operating Mode：Single Tone
Duration：-
Sound Pressure Level (SPL)：85dB @ 12V, 30cm
Current - Supply：8mA
Port Location：Top
Operating Temperature：-20°C ~ 70°C
Approval Agency：-
Ratings：-
Ingress Protection：-
Mounting Type：Panel Mount, Flange
Termination：Wire Leads
Height - Seated (Max)：0.185" (4.70mm)
Voltage - Rated：12 V
Voltage Range：3 ~ 28V
Size / Dimension：0.945" Dia (24.00mm)

Download product information

PT-2045FWQ

Overview

The PT-2045FWQ is a piezoelectric buzzer manufactured by Mallory Sonalert Products Inc. It operates within a voltage range of 3 to 28 VDC and produces a continuous tone at a frequency of 4.5 kHz. The device delivers a sound pressure level of 85 dBA. It features a 24 mm flange design intended for panel mounting applications.

Feature Summary

Piezoelectric transducer technology
Continuous tone output
Panel mount installation via 24 mm flange

Applications

Industrial audio indicators
Control panel alarms
Equipment status alerts

Procurement Notes

Verify the specific operating voltage requirements against the 3-28 VDC specification before procurement. Confirm that the 24 mm flange dimension matches the panel cutout. Ensure the 85 dBA acoustic output meets the environmental noise requirements of the installation site. Check for RoHS compliance documentation if required by project specifications.

Selection Notes

Select this component when a compact, low-voltage DC piezo buzzer is required for panel-mounted applications. The 24 mm flange provides secure mechanical attachment. Consider the 4.5 kHz frequency and 85 dBA volume for audible alerting in moderate noise environments. Verify compatibility with the system's power supply voltage range.

Part Context

This part belongs to the Mallory Sonalert industrial buzzer series. It is designed for reliable audio signaling in electronic equipment. The product utilizes piezoelectric materials for efficient sound generation without moving coils.
