PTE7100-22DC-0B050BN

Pressure Sensors Transducers Overview

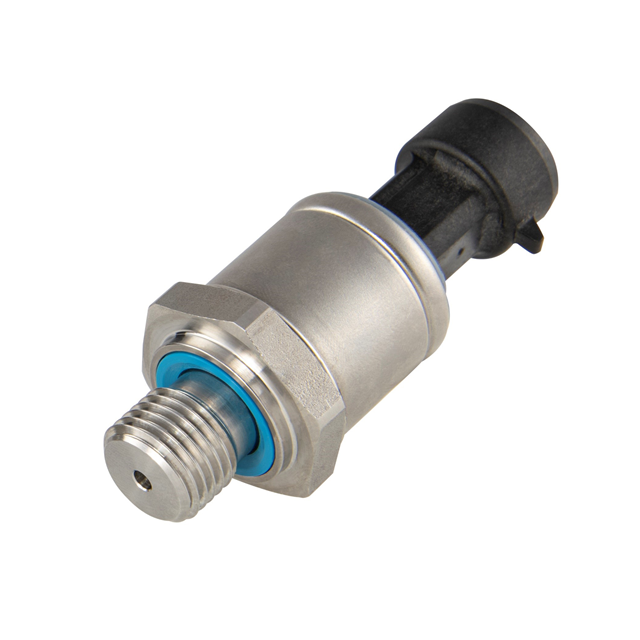

The Sensata Technologies PTE7100-22DC-0B050BN is a hermetic analog pressure sensor designed for general industrial applications. It features a male 1/4" (6.35mm) NPT port and operates within a supply voltage range of 4.75V to 5.25V. The device provides an analog voltage output spanning 0.5V to 4.5V with an accuracy of ±1.5%. It has a working pressure of 725.19 PSI (5000 kPa) and a maximum pressure of 1450.38 PSI (10000 kPa). The sensor functions in temperatures from -40°C to 100°C and utilizes a cylindrical threaded package.

Pressure Sensors Transducers Feature Summary

• Hermetic construction ensures reliable performance in demanding industrial environments
• Analog voltage output facilitates direct integration into standard measurement systems
• Cylindrical threaded housing supports robust mechanical installation

Pressure Sensors Transducers Applications

• General industrial pressure measurement
• Mid-range challenging measuring requirements
• Industrial automation control systems

Pressure Sensors Transducers Procurement Notes

Verify the specific part number against official Sensata documentation to confirm port type, output range, and supply voltage compatibility. Ensure the application environment remains within the specified temperature and pressure limits. Confirm RoHS compliance status if required by project specifications. Cross-reference datasheet revisions for any updates to electrical characteristics or mechanical dimensions before finalizing procurement.

Pressure Sensors Transducers Selection Notes

Select this model when a hermetic analog sensor with a 1/4" NPT connection is required. It is suitable for applications needing a 5V supply and a 0.5V to 4.5V output signal. Consider the ±1.5% accuracy and 725.19 PSI working pressure range. Verify that the cylindrical threaded form factor fits the available space and mounting constraints of the target system.

Pressure Sensors Transducers Part Context

This component belongs to the PTE7100 series of hermetic analog pressure sensors manufactured by Sensata Technologies. The series is engineered for robust performance in general industrial settings. The PTE7100-22DC-0B050BN variant specifically defines the 1/4" NPT port configuration and the associated electrical parameters for analog voltage output.

Pressure Sensors Transducers Replacement Considerations

Consult the official PTE7100 series datasheet for confirmed substitute part numbers. Ensure any replacement matches the hermetic design, port size, and electrical specifications. Generic industrial pressure sensors may not provide equivalent hermetic sealing or accuracy levels.
