PX10-AF6WP(30)

Headers, Male Pins Overview

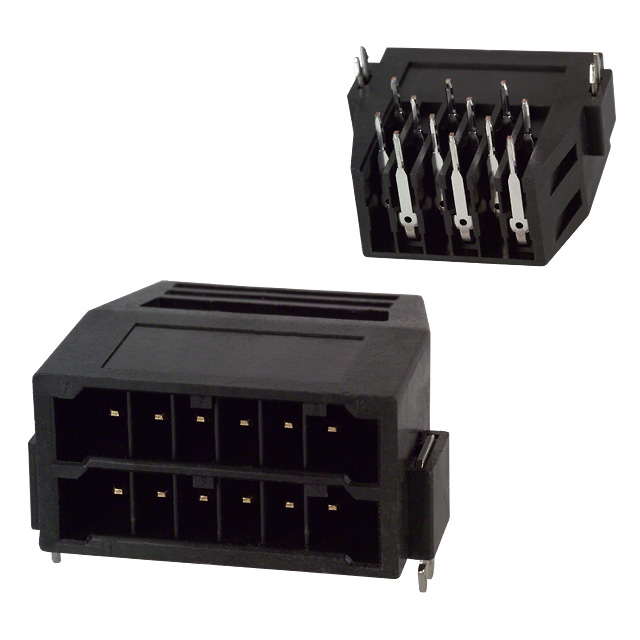

The PX10-AF6WP(30) is a right-angle header connector manufactured by Hirose Electric Co Ltd. It features a 12-position configuration with a 3.4mm pitch. The component is designed for surface mount applications and complies with lead-free and RoHS standards.

Headers, Male Pins Feature Summary

• Right-angle header design for space-efficient board mounting
• 12-position configuration with 3.4mm spacing
• RoHS compliant and lead-free construction

Headers, Male Pins Applications

• Industrial equipment interconnects
• General electronic circuit boards
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix and packaging quantity when placing orders, as these details define the final product configuration. Confirm that the component meets current environmental compliance requirements for the target market. Ensure the right-angle orientation matches the mechanical layout of the printed circuit board to avoid clearance issues during assembly.

Headers, Male Pins Selection Notes

Select this connector when a low-profile, right-angle solution is required for 12-circuit connections. The 3.4mm pitch accommodates standard trace widths while maintaining electrical isolation. Consider the surface mount footprint and soldering profile compatibility with the manufacturing process to ensure reliable joint formation without thermal damage to adjacent components.

Headers, Male Pins Part Context

This part belongs to the PX10 series of power supply connectors intended for industrial equipment. The series provides robust interconnection solutions for various electronic applications. Hirose Electric manufactures this line to meet global standards for reliability and environmental safety in modern electronic assemblies.

Headers, Male Pins Replacement Considerations

The PX10-AF6WP(50) is listed as a discontinued product with the PX10-AF6WP(30) identified as its substitute. Verify mechanical and electrical compatibility before replacing older inventory with this current version.
