PYEUCJJANF-76.800000

Oscillators Overview

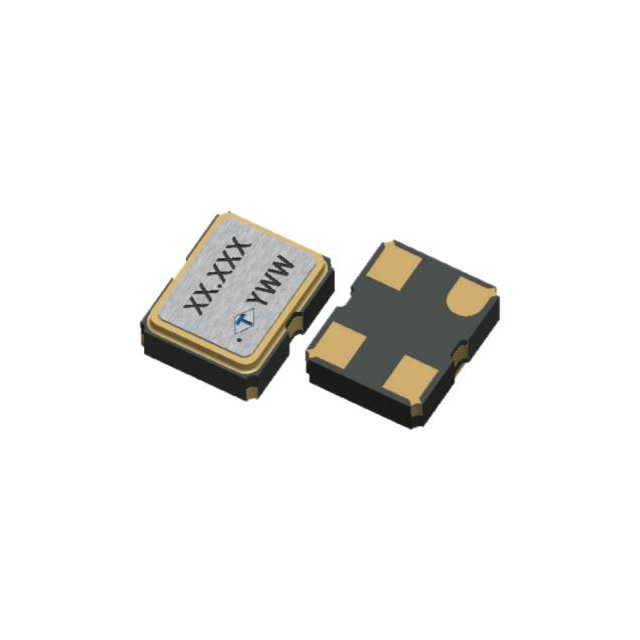

The PYEUCJJANF-76.800000 is a CMOS crystal oscillator manufactured by Taitien, operating at a frequency of 76.8 MHz. It functions within a supply voltage range of 2.8V to 3.3V and features an enable/disable control function for power management. The component utilizes a standard XO output type and is housed in a compact 4-SMD, no lead package with dimensions of 2.55mm x 2.05mm and a maximum height of 0.60mm. Designed for surface mount installation, it supports operation across a temperature range of -20°C to 70°C, ensuring reliability in various electronic applications requiring precise timing signals.

Oscillators Feature Summary

• Integrates enable/disable functionality for active power management
• Delivers stable CMOS output signals at 76.8 MHz
• Utilizes a miniature surface-mount package for space-constrained designs

Oscillators Applications

• Embedded systems requiring precise clock synchronization
• Low-power digital circuit timing references
• Consumer electronics with strict size limitations

Oscillators Procurement Notes

Verify the specific suffix codes against official Taitien documentation to confirm exact electrical tolerances and packaging configurations. Ensure that the selected variant matches the required operating temperature range and supply voltage specifications for the target application environment. Cross-reference the part number with authorized distributors to confirm current availability and compliance with relevant environmental standards such as RoHS.

Oscillators Selection Notes

Select this oscillator when a fixed 76.8 MHz frequency is required alongside low-voltage compatibility. Consider the enable/disable feature if dynamic power saving is necessary during idle periods. Evaluate the physical footprint constraints against the 4-SMD package dimensions. Confirm that the CMOS output logic levels are compatible with the receiving input circuits of the host system.

Oscillators Part Context

This component belongs to Taitien's series of surface-mount crystal oscillators designed for general-purpose timing applications. It represents a standard configuration within their portfolio, offering a balance between performance and physical size. The part is engineered to meet industry requirements for miniaturization while maintaining signal integrity in high-speed digital environments.

Oscillators Replacement Considerations

Consult official substitution guides for equivalent models from Taitien or other manufacturers. Verify pinout compatibility and electrical parameter alignment before replacing the original component. Ensure that any substitute part meets the same frequency stability and package dimension requirements.
