PYEUGLJANF-25.000000

Oscillators Overview

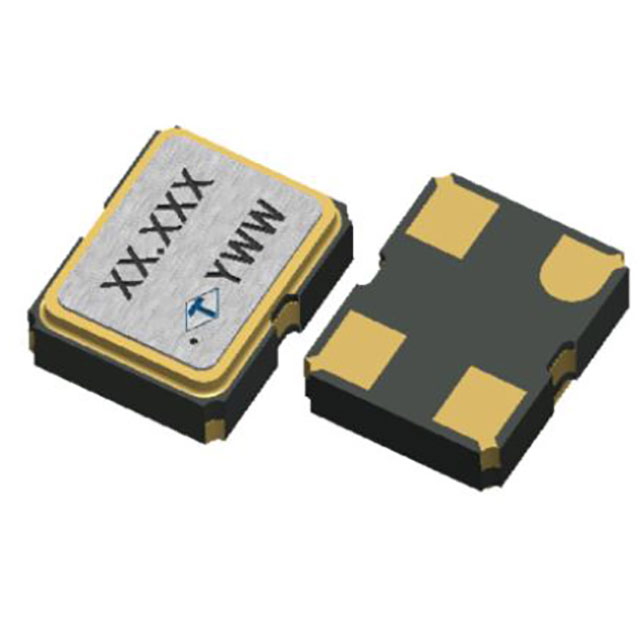

PYEUGLJANF-25.000000 is a 25 MHz standard crystal oscillator manufactured by Taitien. It operates on a nominal 3.3 V supply voltage and utilizes CMOS output technology. The component is housed in a 4-CSMD, No Lead surface-mount package. Key electrical characteristics include an enable/disable function for power management and compliance with RoHS standards. This oscillator is designed for applications requiring precise timing signals within standard consumer and industrial electronic systems.

Oscillators Feature Summary

• CMOS output interface for digital logic compatibility
• Enable and disable functionality for power control
• RoHS compliant manufacturing process
• Surface-mount ceramic package design

Oscillators Applications

• General-purpose digital timing circuits
• Consumer electronics clock sources
• Industrial control system synchronization
• IoT device frequency references

Oscillators Procurement Notes

Verify the specific datasheet version to confirm exact pinout configurations and absolute maximum ratings before integration. Ensure that the PCB footprint matches the 4-CSMD package dimensions precisely. Confirm that the supply voltage remains within the specified operational range to maintain signal integrity and prevent device damage during operation.

Oscillators Selection Notes

Select this component when a standard CMOS output oscillator is required for 25 MHz applications. Consider the enable/disable feature if power efficiency is a priority. Verify that the operating temperature range meets the environmental requirements of the target application. Compare package dimensions against available board space constraints.

Oscillators Part Context

This part belongs to Taitien's line of standard crystal oscillators. Taitien is a recognized manufacturer of frequency control products, including quartz crystals and various oscillator types. The PYEU series represents their surface-mount offerings designed for compact electronic designs requiring reliable timing solutions.

Oscillators Replacement Considerations

Check for direct substitutes with identical 25 MHz frequency, CMOS output type, and 3.3 V supply voltage. Ensure replacement parts support the same 4-CSMD package form factor. Verify that any alternative component offers compatible enable/disable functionality and similar phase jitter specifications.
