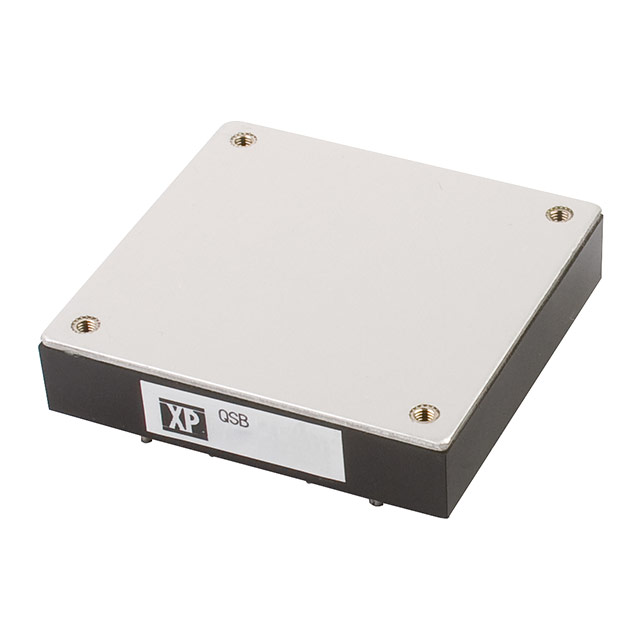

QSB35048S24

QSB35048S24 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER 24V 350W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for QSB35048S24

• Description：DC DC CONVERTER 24V 350W
• Series：QSB (350W)
• Mfr：XP Power
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：14.6A
• Power (Watts)：350 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, SCP
• Operating Temperature：-40°C ~ 100°C
• Efficiency：91.50%
• Mounting Type：Through Hole
• Package / Case：9-DIP Module
• Size / Dimension：2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for QSB35048S24
