R570813000

RF Switches Overview

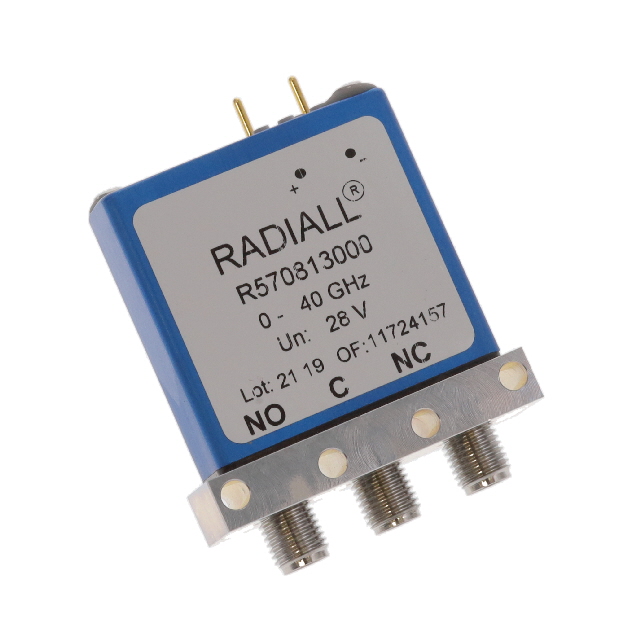

The R570813000 is a SPDT coaxial switch from the Ramses series by Radiall USA, Inc. It operates with SMA2.9 interfaces and supports frequencies up to 40GHz. The device utilizes 28Vdc power and features TTL diode control with pin terminals. Key electrical specifications include a maximum insertion loss of 0.8dB at 40GHz and a minimum isolation of 50dB. It is designed for failsafe operation in high-frequency applications.

RF Switches Feature Summary

• SPDT configuration with SMA2.9 interface
• Operates up to 40GHz frequency range
• Failsafe design with 28Vdc control
• TTL diode terminal control mechanism

RF Switches Applications

• High-frequency signal routing
• Test and measurement equipment
• Telecommunications systems

RF Switches Procurement Notes

Verify the specific datasheet revision and manufacturing date code upon order confirmation. Ensure compatibility with SMA2.9 mating connectors and verify that the 28Vdc TTL control logic aligns with the system interface requirements before finalizing procurement.

RF Switches Selection Notes

Select this component when a failsafe SPDT switching solution is required for signals extending to 40GHz. Consider the 28Vdc power requirement and pin terminal packaging format. Evaluate insertion loss and isolation performance against system link budget constraints to ensure adequate signal integrity.

RF Switches Part Context

This part belongs to the Ramses series of coaxial switches, which are engineered for high-reliability RF applications. The series typically offers robust performance in demanding environments, supporting various interface types and control mechanisms suitable for professional electronic systems.

RF Switches Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify functional equivalence with other Ramses series models or consult manufacturer resources for direct replacements.
