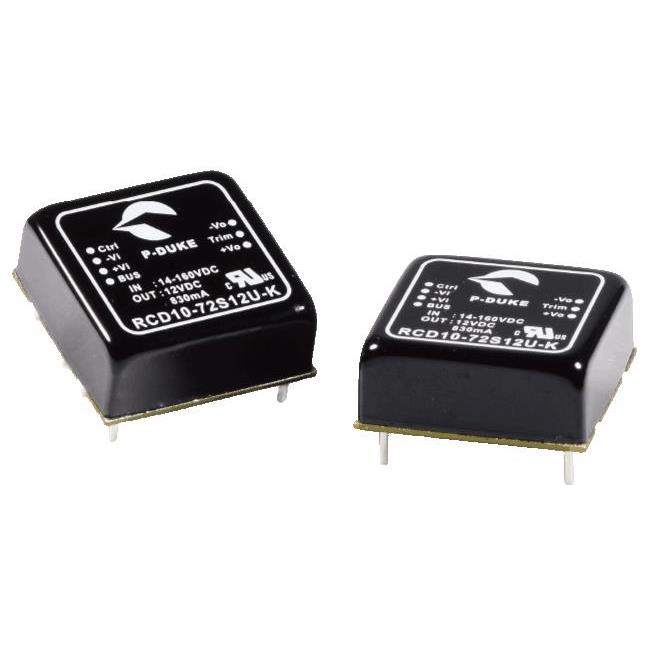

RCD10-72S12U-AK

RCD10-72S12U-AK is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is ISOLATED / 10W/ VOUT:12. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RCD10-72S12U-AK

• Description：ISOLATED / 10W/ VOUT:12
• Series：RCD10U (10W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：14V
• Voltage - Input (Max)：160V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：830mA
• Power (Watts)：10 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：88%
• Mounting Type：Through Hole
• Package / Case：7-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CE
• Standard Number：62368-1

DC DC Converters datasheet and documents for RCD10-72S12U-AK
