RFDPA151310NNAB3G1

$6.16

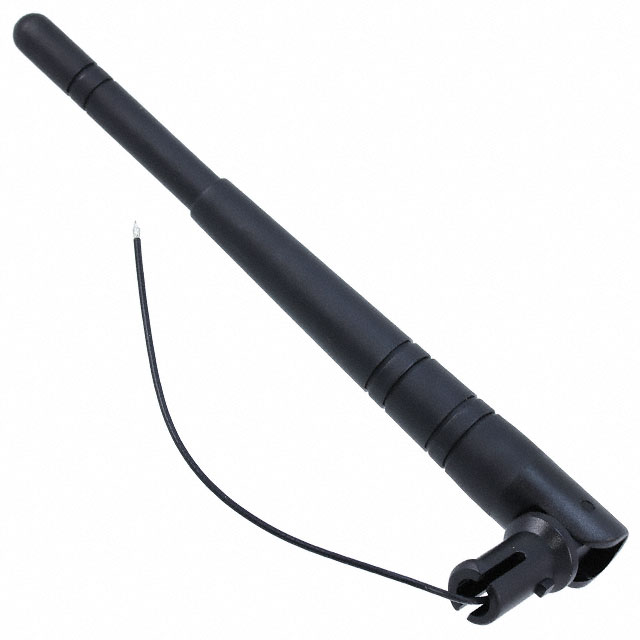

Description：RF ANT 2.4GHZ WHIP/TILT CONN MT
Series：-
Mfr：Walsin Technology Corporation
Package：Bulk

SKU:2088863a9793 Category: RF Antennas Brand: Walsin Technology Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RFDPA151310NNAB3G1 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Walsin Technology Corporation. Its product description is RF ANT 2.4GHZ WHIP/TILT CONN MT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for RFDPA151310NNAB3G1

Description：RF ANT 2.4GHZ WHIP/TILT CONN MT
Series：-
Mfr：Walsin Technology Corporation
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Tilt
Number of Bands：1
VSWR：2
Return Loss：-10dB
Gain：3dBi
Features：Cable - 100mm
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：6.201" (157.50mm)
Applications：-
Power - Max：-

Antennas RF datasheet and documents for RFDPA151310NNAB3G1

RFDPA151310NNAB3G1

Antennas RF Overview

The RFDPA151310NNAB3G1 is a dipole antenna manufactured by Walsin Technology Corporation. It operates at a frequency of 2.4 GHz and features a 10 mm cable length. The component utilizes an RPSMA connector interface for secure attachment to host devices.

Antennas RF Feature Summary

Designed for 2.4 GHz wireless communication bands
Integrates a 10 mm flexible cable for spatial flexibility
Equipped with an RPSMA connector for reliable signal transmission

Antennas RF Applications

Bluetooth device integration
Wi-Fi module connectivity
Zigbee sensor networks

Antennas RF Procurement Notes

Verify the specific connector gender and cable termination style against the target PCB footprint or mating port requirements. Confirm that the operating frequency range aligns with the system's 2.4 GHz band specifications to ensure optimal signal integrity and impedance matching during procurement validation.

Antennas RF Selection Notes

Select this component when a compact, low-profile antenna solution is required for 2.4 GHz applications. The integrated cable allows for placement away from metal enclosures, improving radiation efficiency compared to surface-mount alternatives in constrained chassis designs.

Antennas RF Part Context

This part belongs to Walsin Technology Corporation's RF antenna portfolio, which includes various dipole, patch, and ceramic antennas. These components support mobile communications and IoT devices requiring reliable short-range wireless connectivity solutions.
