RFPCA500609IMAB301

Antennas RF Overview

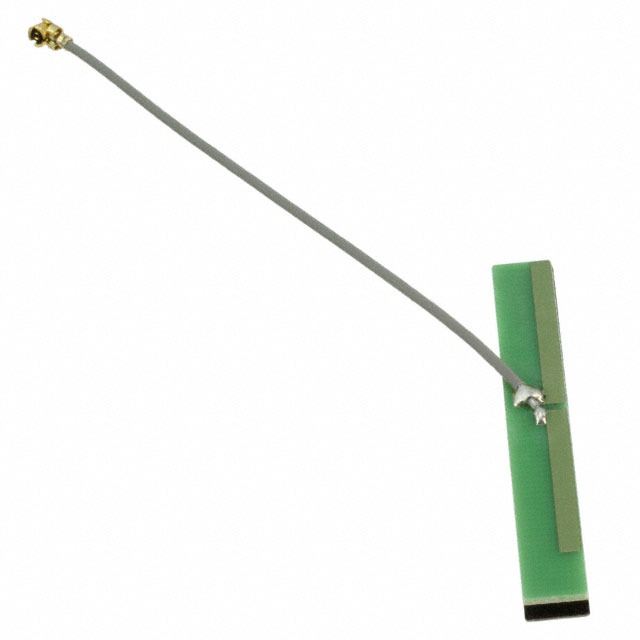

The RFPCA500609IMAB301 is a PCB trace antenna manufactured by Walsin Technology Corporation, designed for operation within the 2.4 GHz to 2.5 GHz frequency range. It features an IPEX connector interface and provides a gain of 4.53 dBi. The component is classified as a PCB antenna intended for wireless communication applications requiring compact integration.

Antennas RF Feature Summary

• Integrated PCB trace design for space-constrained layouts
• Optimized performance in the 2.4 GHz to 2.5 GHz ISM band
• IPEX connector interface for direct module attachment

Antennas RF Applications

• Wireless sensor networks
• Bluetooth Low Energy (BLE) devices
• Zigbee and IEEE 802.15.4 modules

Antennas RF Procurement Notes

Verify the specific IPEX connector compatibility with the target RF module before procurement. Confirm that the operating frequency range aligns with the system's regulatory requirements. Ensure mechanical dimensions fit the designated PCB area without interference from surrounding components or chassis elements.

Antennas RF Selection Notes

Select this antenna when a low-profile, integrated solution is required for 2.4 GHz applications. Consider the 4.53 dBi gain relative to other PCB antennas in the same footprint. Evaluate the IPEX interface against available RF connector types on the host device to ensure seamless integration.

Antennas RF Part Context

This component belongs to Walsin Technology Corporation's passive component portfolio, specifically focusing on RF solutions. It serves as a specialized antenna element for modern wireless IoT and communication devices, complementing their broader range of electronic components.
