RFVS8TJ6SGC9

Single Diodes Overview

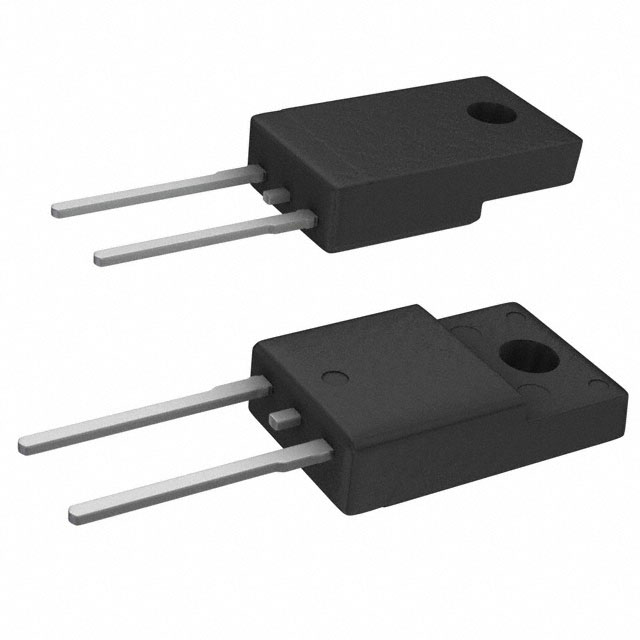

The RFVS8TJ6SGC9 is a silicon epitaxial planar ultra-fast recovery diode manufactured by ROHM Semiconductor. It features a single configuration housed in a TO-220ACFP leaded package. Key electrical specifications include a maximum repetitive reverse voltage of 600V and an average rectified forward current of 8A. The device exhibits a maximum forward voltage of 2.8V at 8A and a maximum reverse leakage current of 10mA at 600V. Its maximum reverse recovery time is 25ns, supporting high-frequency switching applications. The component operates within a storage temperature range of -55°C to 150°C.

Single Diodes Feature Summary

• Ultra-fast recovery characteristics with hard recovery type behavior
• Designed for ultra-low switching loss performance
• Provides high current overload capacity

Single Diodes Applications

• General rectifier applications requiring fast recovery
• High-frequency power supply circuits
• Inverter output rectification stages

Single Diodes Procurement Notes

Verify the exact suffix GC9 against official ROHM documentation to confirm pinout and packaging specifics. Confirm RoHS compliance status directly with the manufacturer as regulatory requirements may change. Ensure the procurement channel is authorized to guarantee component authenticity and traceability. Check for any specific handling instructions related to the TO-220ACFP package during assembly.

Single Diodes Selection Notes

Select this component when a balance between moderate forward current capability and very fast switching speed is required. The 600V rating suits medium-voltage AC-DC conversion or DC-DC isolated topologies. Consider the thermal management requirements associated with the TO-220ACFP package for your specific heat dissipation needs. Compare the 25ns recovery time against system switching frequencies to ensure minimal reverse recovery charge losses.

Single Diodes Part Context

This part belongs to ROHM's RFV series of ultra-fast recovery diodes. These components are engineered for efficiency in power conversion systems. The series emphasizes reduced switching losses compared to standard recovery diodes. The TO-220ACFP package provides robust mechanical mounting and thermal conductivity for through-hole implementations.

Single Diodes Replacement Considerations

Consult official ROHM substitution guides for verified alternatives. Generic replacements must match the 600V reverse voltage, 8A forward current, and sub-30ns reverse recovery time specifications. Verify that any substitute maintains compatibility with the TO-220ACFP footprint and thermal characteristics.
