RM40-2011-85-1005

Power Relays, Over 2 Amps Overview

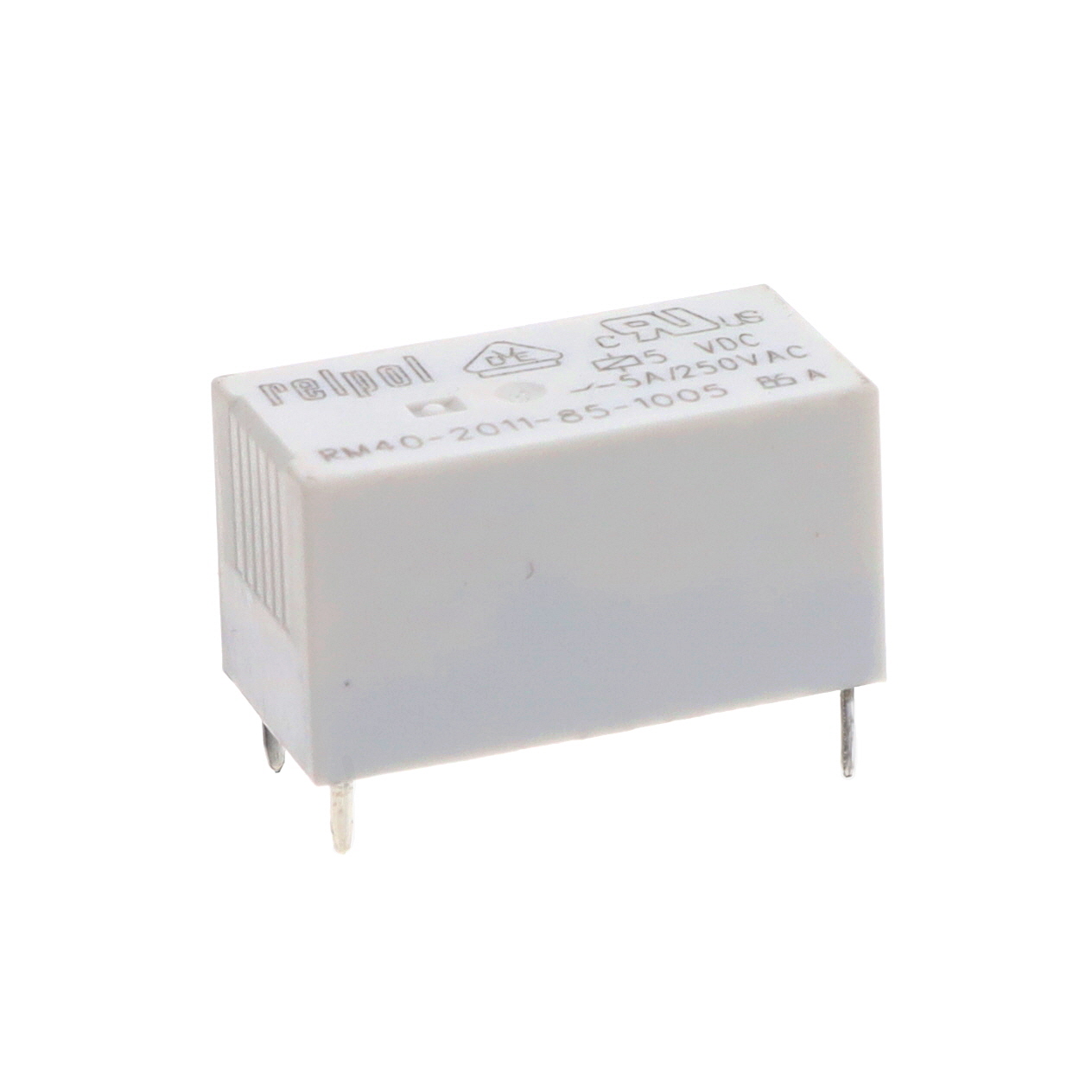

The RM40-2011-85-1005 is a general-purpose industrial miniature relay manufactured by Altech Corporation. It features a single-pole double-throw (SPDT) contact configuration with a 5VDC coil voltage. The component utilizes through-hole solder pin termination for both the coil and contacts, ensuring secure PCB mounting. Key electrical ratings include a 6A switching current capacity and support for up to 400VAC or 250VDC switching voltages. The coil resistance is specified at 147 Ohms with a power consumption of 170 mW. The unit operates as a non-latching relay and meets IP64 ingress protection standards.

Power Relays, Over 2 Amps Feature Summary

• Single-pole double-throw (SPDT) contact configuration for versatile circuit switching
• Through-hole solder pin termination for reliable printed circuit board integration
• Non-latching operation mode with low power coil consumption
• IP64 rated housing providing protection against dust and water splashes

Power Relays, Over 2 Amps Applications

• Industrial control panel signal switching
• Miniature relay interface protection circuits
• General purpose automation logic control systems

Power Relays, Over 2 Amps Procurement Notes

Verify the specific ordering suffix matches the required coil voltage and contact configuration before purchase. Confirm that the through-hole package dimensions align with the target PCB footprint. Ensure the supplier provides valid RoHS compliance documentation if environmental regulations apply to the end product. Cross-reference the manufacturer part number directly with official Altech catalogs to avoid counterfeit components.

Power Relays, Over 2 Amps Selection Notes

Select this component when a compact SPDT relay is required for low-voltage DC coil applications. The 5VDC coil specification suits systems powered by standard digital logic levels. Consider the 6A current rating for moderate load switching requirements. The IP64 rating makes it suitable for environments requiring basic splash protection without full sealing.

Power Relays, Over 2 Amps Part Context

This model belongs to Altech's miniature relay series designed for space-constrained industrial applications. It serves as a direct replacement for standard form C relays in legacy designs. The product line emphasizes durability and consistent performance in automated manufacturing settings. It complements Altech's broader portfolio of terminal blocks and fuses.

Power Relays, Over 2 Amps Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical compatibility and electrical parameters when sourcing alternatives from other manufacturers.
