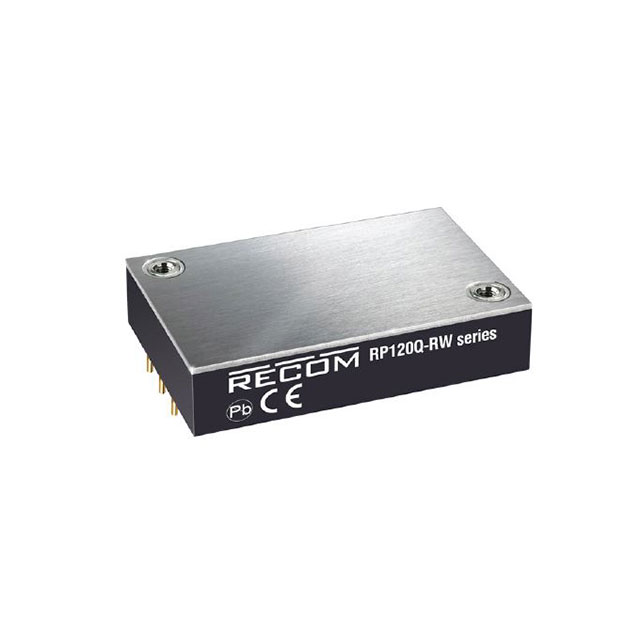

RP120Q-11024SRW/P

RP120Q-11024SRW/P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 24V 132W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RP120Q-11024SRW/P

• Description：DC DC CONVERTER 24V 132W
• Series：POWERLINE RP120-RW (120W)
• Mfr：Recom Power
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：40V
• Voltage - Input (Max)：160V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：5.5A
• Power (Watts)：132 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
• Supplier Device Package：Quarter Brick
• Control Features：-
• Approval Agency：-

DC DC Converters datasheet and documents for RP120Q-11024SRW/P
