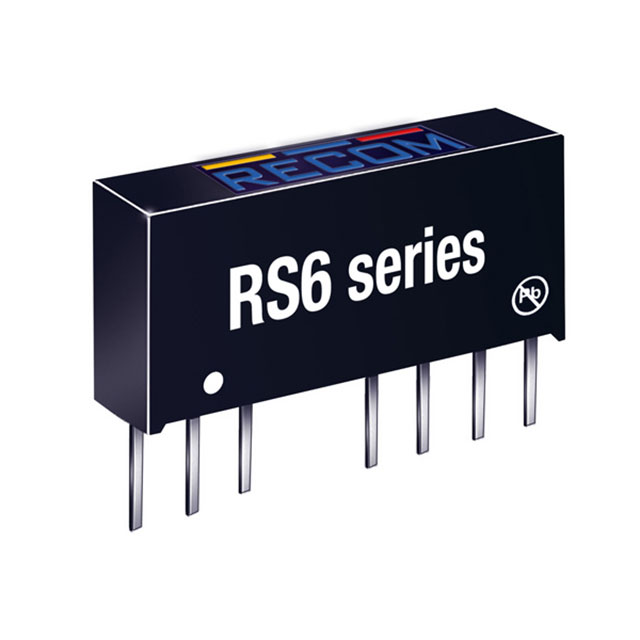

RS6-4812S

RS6-4812S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 12V 6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RS6-4812S

• Description：DC DC CONVERTER 12V 6W
• Series：ECONOLINE RS6 (6W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA
• Power (Watts)：6 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, SCP, UVLO
• Operating Temperature：-40°C ~ 75°C
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 6 Leads
• Size / Dimension：0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for RS6-4812S
