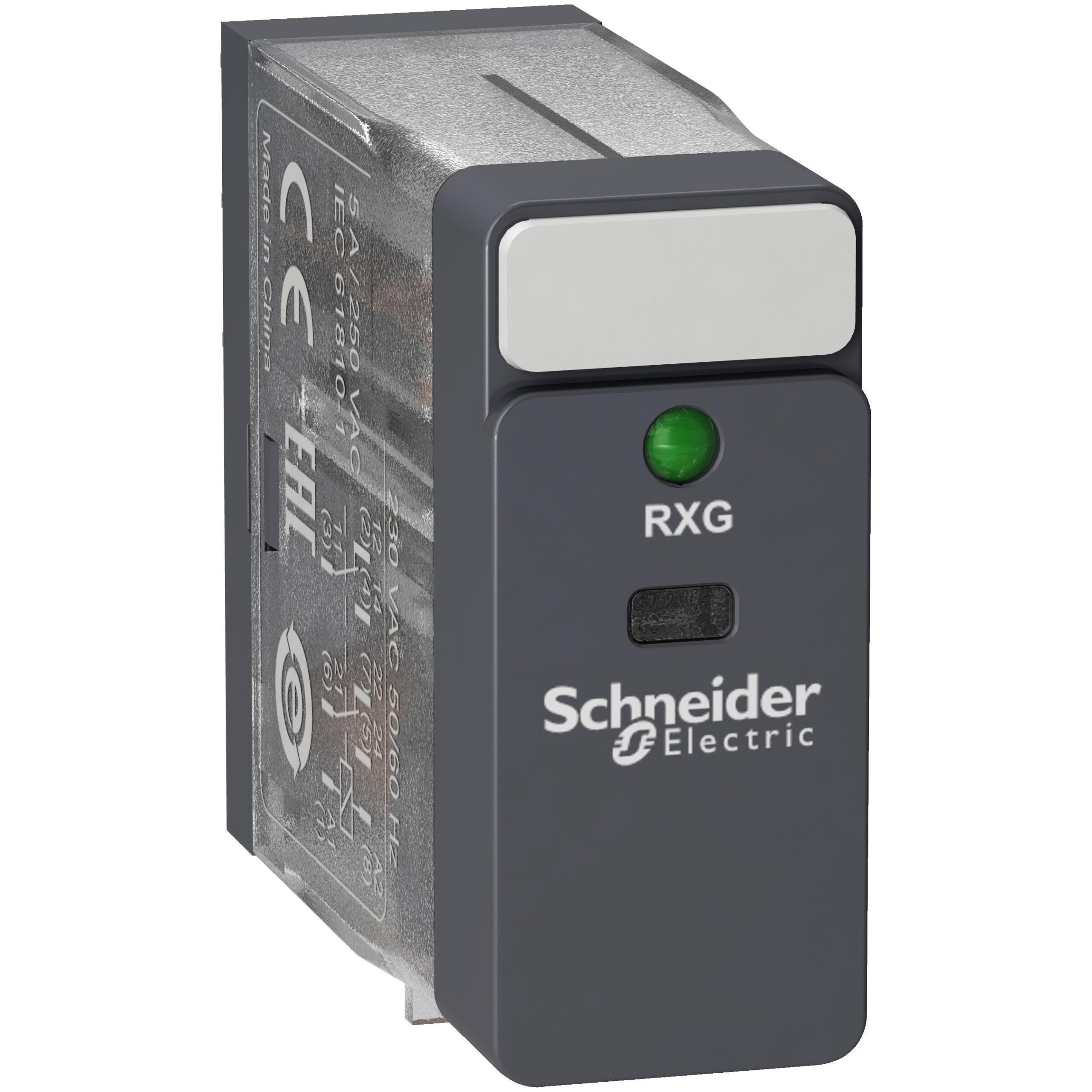

Power Relays, Over 2 Amps RXG23M7 product image

RXG23M7

$13.49

Description：RELAY 2CO 5A@250VAC 220VAC COIL
Series：Harmony
Mfr：Schneider Electric
Package：Box

SKU:bd43740367aa Category: Power Relays, Over 2 Amps Brand: Schneider Electric

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RXG23M7 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Schneider Electric. Its product description is RELAY 2CO 5A@250VAC 220VAC COIL. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for RXG23M7

Description：RELAY 2CO 5A@250VAC 220VAC COIL
Series：Harmony
Mfr：Schneider Electric
Package：Box
Mounting Type：Chassis Mount
Coil Voltage：220VAC
Contact Form：DPDT (2 Form C)
Contact Rating (Current)：5:00 AM
Switching Voltage：250VAC, 30VDC - Max
Load - Max Switching：1250VA, 150W
Coil Current：10.5 mA
Coil Type：Non Latching
Features：Lighted Indicator
Termination Style：Plug In
Seal Rating：-
Coil Insulation：Class F
Must Operate Voltage：176 VAC
Must Release Voltage：66 VAC
Operating Temperature：-40°C ~ 70°C
Contact Material：Silver Tin Oxide Indium Oxide (AgSnOInO)
Approval Agency：CE, CSA, DNV-GL, EAC, UL
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：20 ms
Release Time：20 ms

Power Relays, Over 2 Amps datasheet and documents for RXG23M7

RXG23M7
