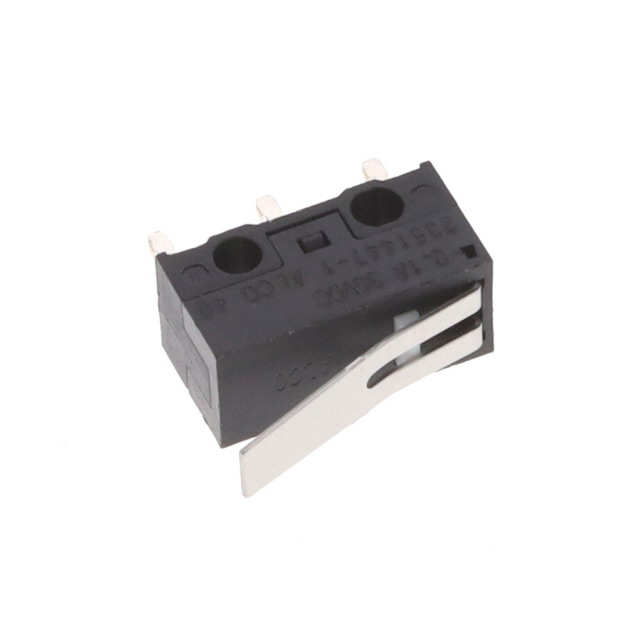

Limit Switches SAJ101XBL0N74SDTPTQ product image

SAJ101XBL0N74SDTPTQ

$0.87

Description：SWITCH SNAP ACTION SPDT 0.1A 30V
Series：SAJ1
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Bulk

SKU:7b3c032f8501 Category: Limit Switches Brand: TE Connectivity ALCOSWITCH Switches

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SAJ101XBL0N74SDTPTQ is listed in the Limit Switches range at ChipApex. The manufacturer field lists TE Connectivity ALCOSWITCH Switches. Its product description is SWITCH SNAP ACTION SPDT 0.1A 30V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for SAJ101XBL0N74SDTPTQ

Description：SWITCH SNAP ACTION SPDT 0.1A 30V
Series：SAJ1
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Bulk
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：100mA (DC)
Voltage Rating - AC：-
Actuator Type：Lever, Straight
Mounting Type：Through Hole
Termination Style：PC Pin
Ingress Protection：-
Features：-
Operating Force：26gf
Release Force：2.000gf
Operating Position：0.378" (9.6mm)
Pretravel：0.087" (2.2mm)
Differential Travel：0.020" (0.5mm)
Overtravel：0.022" (0.55mm)
Operating Temperature：-25°C ~ 75°C
Voltage Rating - DC：30 V

Limit Switches datasheet and documents for SAJ101XBL0N74SDTPTQ

SAJ101XBL0N74SDTPTQ
