SB0606WC01-RGB

$1.04

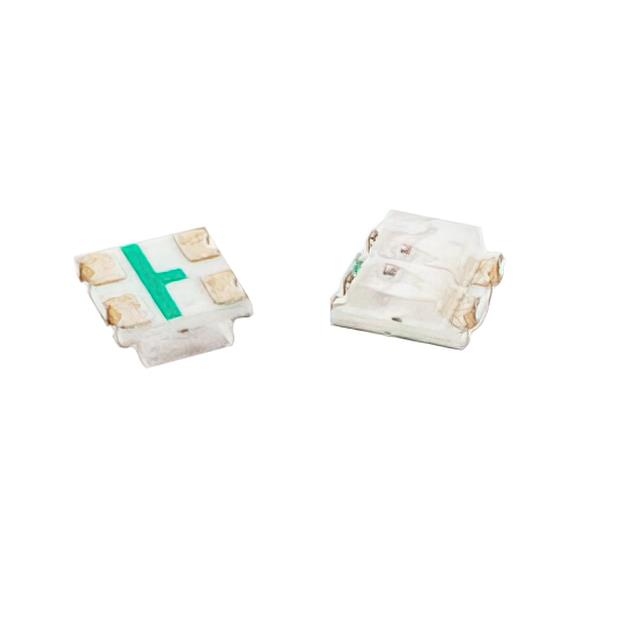

Description：LED RGB CLEAR 4SMD
Series：SpectraBright
Mfr：Visual Communications Company - VCC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:cf0b8fb0b14a Category: LED Indication - Discrete Brand: Visual Communications Company - VCC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SB0606WC01-RGB is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Visual Communications Company - VCC. Its product description is LED RGB CLEAR 4SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for SB0606WC01-RGB

Description：LED RGB CLEAR 4SMD
Series：SpectraBright
Mfr：Visual Communications Company - VCC
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：160mcd Red, 600mcd Green, 125mcd Blue
Lens Style：Rectangle with Flat Top
Lens Size：1.20mm x 1.60mm
Voltage - Forward (Vf) (Typ)：2V Red, 3V Green, 3V Blue
Current - Test：20mA Red, 20mA Green, 20mA Blue
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：635nm Red, 518nm Green, 460nm Blue
Wavelength - Peak：-
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：4-SMD
Size / Dimension：1.60mm L x 1.60mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for SB0606WC01-RGB

SB0606WC01-RGB

LED Indication - Discrete Overview

The SB0606WC01-RGB is a surface-mount RGB LED from the SpectraBright series by Visual Communications Company. It features a common anode configuration in a 4-SMD, no-lead package measuring 1.60mm x 1.60mm with a maximum height of 0.70mm. The device emits red (635nm), green (518nm), and blue (460nm) light with a 120-degree viewing angle. Typical forward voltages are 2V for red and 3V for green and blue. Luminous intensities are rated at 160mcd for red, 600mcd for green, and 125mcd for blue under a 20mA test current.

LED Indication - Discrete Feature Summary

Integrated RGB tri-color emission within a compact surface-mount footprint
Common anode electrical configuration for simplified circuit design
Water-clear colorless lens providing a 120-degree viewing angle

LED Indication - Discrete Applications

Status indication on electronic circuit boards
Backlighting for consumer device interfaces
Visual signaling in automotive interior electronics

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official VCC documentation to confirm pinout and wavelength tolerances. Ensure compatibility with standard reflow soldering profiles for 4-SMD packages. Confirm RoHS compliance status for your region's regulatory requirements before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a single package solution for red, green, and blue illumination is required. The common anode structure reduces pin count compared to discrete LEDs. Consider the 1.60mm x 1.60mm dimensions for space-constrained PCB layouts requiring high-brightness multi-color output.

LED Indication - Discrete Part Context

This part belongs to the SpectraBright series of SMD LEDs manufactured by Visual Communications Company. It is designed for applications requiring reliable multi-color indication in a small form factor. The series typically offers various color combinations and lens styles for diverse industrial and consumer electronics needs.
