SB10-03A2

$0.18

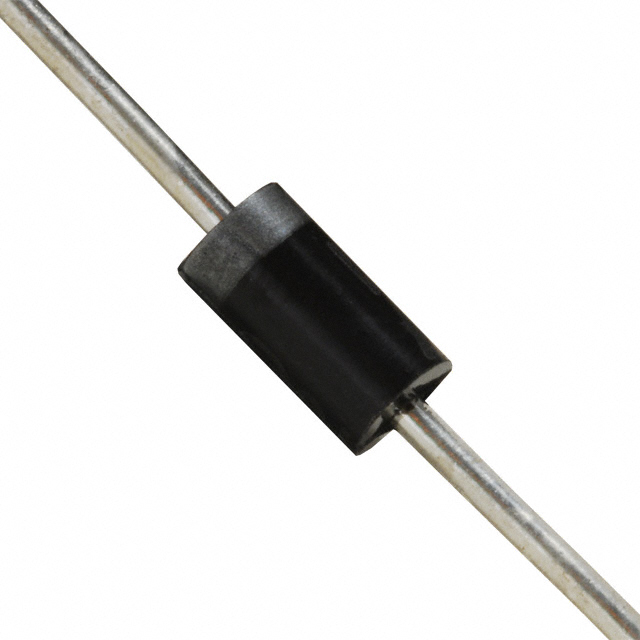

Description：DIODE SCHOTTKY 30V 1A DO41
Series：-
Mfr：onsemi
Package：Bulk,Bulk

SKU:d3a2ceb16832 Category: Single Diodes Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SB10-03A2 is listed in the Single Diodes range at ChipApex. The manufacturer field lists onsemi. Its product description is DIODE SCHOTTKY 30V 1A DO41. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for SB10-03A2

Description：DIODE SCHOTTKY 30V 1A DO41
Series：-
Mfr：onsemi
Package：Bulk,Bulk
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：30 V
Current - Average Rectified (Io)：1A
Voltage - Forward (Vf) (Max) @ If：550 mV @ 1 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：30 ns
Current - Reverse Leakage @ Vr：1 mA @ 30 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：DO-204AL, DO-41, Axial
Supplier Device Package：DO-41
Operating Temperature - Junction：150°C (Max)
Grade：-
Qualification：-

Single Diodes datasheet and documents for SB10-03A2

SB10-03A2

Single Diodes Overview

The SB10-03A2 is a Schottky Barrier Diode manufactured by SANYO Electric Co., Ltd. It features a repetitive peak reverse voltage of 30 V and an average rectified current rating of 1.0 A at 50°C. The device exhibits a maximum forward voltage of 0.55 V and a fast reverse recovery time of 30 ns. It operates within a junction temperature range up to 125 °C and has a thermal resistance of 140 °C/W.

Single Diodes Feature Summary

Low forward voltage for efficient power conversion
Fast reverse recovery time minimizing switching noise
Schottky barrier construction for high-frequency operation

Single Diodes Applications

High frequency rectification in switching regulators
Power converters
Chopper circuits

Single Diodes Procurement Notes

Verify the manufacturer origin, as this component originates from SANYO Electric Co., Ltd. rather than onsemi. Confirm that the specific package dimensions and thermal characteristics align with your design requirements. Ensure compliance with the stated usage restrictions regarding life-support or automotive applications.

Single Diodes Selection Notes

Select this component for designs requiring low forward voltage drop and rapid switching speeds. The 30 V rating suits low-voltage DC-DC converter topologies. Evaluate the thermal management strategy, considering the 140 °C/W junction-to-ambient resistance under free-air conditions without heat sinking.

Single Diodes Part Context

This part belongs to the SB10 series of Schottky Barrier Rectifiers produced by SANYO Electric. These devices are engineered for general-purpose high-frequency rectification where low power loss and minimal switching noise are critical performance factors.

Single Diodes Replacement Considerations

Consult official cross-reference tools for compatible alternatives. Verify that any substitute maintains equivalent reverse voltage, current ratings, and reverse recovery specifications to ensure circuit compatibility.
