SBR0240LPWQ-7B

$0.20

Description：DIODE SBR 40V 200MA X1DFN10062
Series：SBR®
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:907761863246 Category: Single Diodes Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SBR0240LPWQ-7B is listed in the Single Diodes range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is DIODE SBR 40V 200MA X1DFN10062. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for SBR0240LPWQ-7B

Description：DIODE SBR 40V 200MA X1DFN10062
Series：SBR®
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Super Barrier
Voltage - DC Reverse (Vr) (Max)：40 V
Current - Average Rectified (Io)：200mA
Voltage - Forward (Vf) (Max) @ If：590 mV @ 200 mA
Speed：Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)：3.8 ns
Current - Reverse Leakage @ Vr：10 µA @ 40 V
Capacitance @ Vr, F：8pF @ 5V, 1MHz
Mounting Type：Surface Mount
Package / Case：0402 (1006 Metric)
Supplier Device Package：X1-DFN1006-2
Operating Temperature - Junction：-65°C ~ 150°C
Grade：Automotive
Qualification：AEC-Q101

Single Diodes datasheet and documents for SBR0240LPWQ-7B

SBR0240LPWQ-7B

Single Diodes Overview

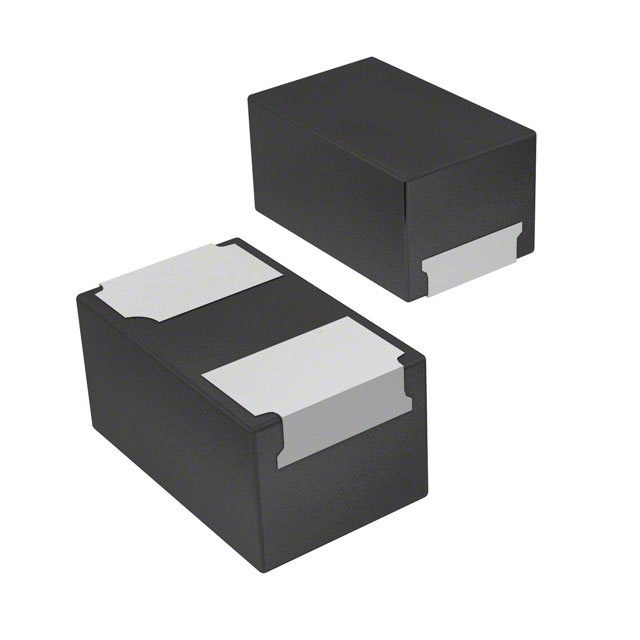

The SBR0240LPWQ-7B is a surface-mount Super Barrier Rectifier manufactured by Diodes Incorporated. It features a 40 V repetitive peak reverse voltage and a 200 mA average rectified output current. The device utilizes patented Trench SBR technology to achieve an ultra-low forward voltage drop of up to 0.59 V at 200 mA and +25°C, with a maximum leakage current of 10 µA at 40 V. It operates within a temperature range of -55°C to +150°C and is housed in an X1-DFN1006-2 package.

Single Diodes Feature Summary

Patented Trench Super Barrier Rectifier (SBR) technology providing superior reverse avalanche capability
Ultra-low forward voltage drop for enhanced efficiency
Visible and solderable side pads on the X1-DFN1006-2 package
Soft, fast switching capability

Single Diodes Applications

DC-DC converters
AC-DC adaptors
Freewheel diode applications
Blocking diode applications

Single Diodes Procurement Notes

Verify component authenticity through authorized channels. Confirm AEC-Q101 qualification status if automotive compliance is required. Ensure packaging specifications match project needs, as the standard carrier is tape and reel. Review datasheet thermal derating curves for accurate power dissipation calculations under specific operating conditions.

Single Diodes Selection Notes

Select this component for circuits requiring low forward voltage and high-temperature stability. The X1-DFN1006-2 package offers a compact footprint suitable for space-constrained designs. Consider the 40 V rating and 200 mA current limit when designing power stages. Verify compatibility with lead-free manufacturing processes due to RoHS compliance.

Single Diodes Part Context

This part belongs to the SBR series from Diodes Incorporated, utilizing proprietary trench technology. It is designed as a replacement for traditional Schottky or standard silicon rectifiers where lower forward voltage and improved thermal performance are critical. The device is qualified for automotive applications under IATF 16949 standards.
