SBR3U60SLDQ-13

Diode Arrays Overview

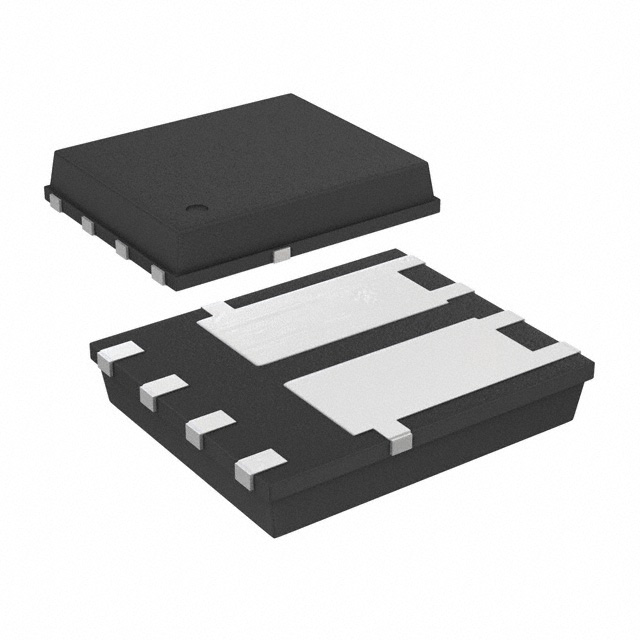

The SBR3U60SLDQ is a dual isolated Super Barrier Rectifier from Diodes Incorporated, housed in a PowerDI5060-8 (Type D) package. It integrates two independent 3A rectifiers with a 60V peak repetitive reverse voltage rating. The device features a maximum forward voltage drop of 0.60V at 3.0A and a maximum reverse leakage current of 0.10mA at 25°C. It operates within a temperature range of -55°C to +175°C and supports non-repetitive avalanche energy up to 90mJ.

Diode Arrays Feature Summary

• Patented SBR technology provides superior avalanche capability compared to standard Schottky diodes for rugged reliability
• Dual isolated configuration integrates two independent 3A rectifiers into a single compact surface-mount package
• Excellent high-temperature stability ensures low leakage current performance at elevated temperatures
• Qualified to AEC-Q101 standards for automotive applications and capable of PPAP submission

Diode Arrays Applications

• Bridge Diodes
• Freewheeling Diodes
• Blocking Diodes
• Reverse Protection Diodes

Diode Arrays Procurement Notes

Verify the specific ordering suffix '-13' corresponds to the required tape and reel packaging quantity of 2,500 units per reel. Confirm that the PowerDI5060-8 footprint matches the recommended pad layout provided in the datasheet documentation. Ensure compliance requirements align with RoHS directives and halogen-free specifications before finalizing procurement orders.

Diode Arrays Selection Notes

Select this component when dual isolated rectification is required in a space-constrained design. The PowerDI5060-8 package offers a thermal resistance of 105°C/W on FR-4 PCBs. Consider the 60V rating and 3A continuous current capacity against circuit load requirements. Verify junction capacitance characteristics if high-frequency switching operations are involved in the target application.

Diode Arrays Part Context

This part belongs to the SBR series utilizing Super Barrier Rectifier technology by Diodes Incorporated. It serves as an alternative to traditional Schottky diodes where improved avalanche ruggedness is necessary. The device is designed for surface-mount assembly using the standardized PowerDI family outline dimensions.

Diode Arrays Replacement Considerations

No public confirmed substitute part numbers are documented in the official datasheet.

Diode Arrays FAQ

What is the maximum operating junction temperature for the SBR3U60SLDQ?

The device supports an operating and storage temperature range from -55°C to +175°C.

How does the SBR technology differ from standard Schottky diodes regarding avalanche capability?

The patented SBR technology provides superior avalanche capability compared to Schottky diodes, ensuring more rugged and reliable end applications.

What is the typical thermal resistance (RθJA) when mounted on an FR-4 PCB?

The typical thermal resistance (RθJA) is 105°C/W when mounted on an FR-4 PCB with 2oz copper.
