SC43B-6R8

Fixed Inductors Overview

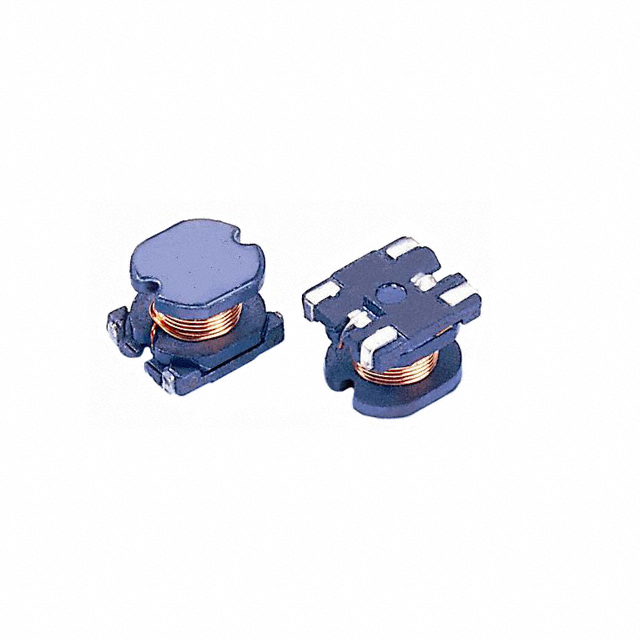

The SC43B-6R8 is a fixed wirewound inductor from the Signal Transformer series, designed for surface mount applications. It features an inductance of 6.8 µH with a tolerance of ±20%. The component has a maximum DC resistance (DCR) of 131 mΩ and a rated current of 1.55 A. The saturation current (Isat) is specified at 1 A. It operates within a temperature range of -40°C to 125°C and utilizes a non-standard SMD package.

Fixed Inductors Feature Summary

• Wirewound construction for stable inductance performance
• Surface mount design for automated PCB assembly
• High current rating capability up to 1.55 A
• Low DC resistance for efficient power handling

Fixed Inductors Applications

• DC/DC converter circuits
• Power supply filtering
• LED driver circuits
• Industrial control systems

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Signal Transformer documentation to ensure authenticity. Confirm that the received components match the required electrical specifications, including the 6.8 µH inductance and 131 mΩ DCR limits. Check for RoHS compliance status and ensure the package type aligns with your board layout requirements before finalizing orders.

Fixed Inductors Selection Notes

Select this component when a 6.8 µH inductance is required with a high current rating of 1.55 A. Ensure the application can accommodate the 1 A saturation current limit to prevent performance degradation. Verify that the non-standard surface mount footprint fits the available PCB space and that the operating temperature range meets environmental conditions.

Fixed Inductors Part Context

This inductor belongs to the SC43B series of fixed power inductors manufactured by Signal Transformer. The series is characterized by wirewound technology suitable for power electronics. These components are engineered for reliability in demanding environments, offering consistent performance across a wide temperature spectrum for industrial and commercial applications.

Fixed Inductors Replacement Considerations

Consult official Signal Transformer documentation for verified substitute part numbers. Cross-reference alternative components based on identical inductance, current ratings, and physical dimensions to ensure compatibility without redesigning the circuit board.
