SD1206S100S1R0

Single Diodes Overview

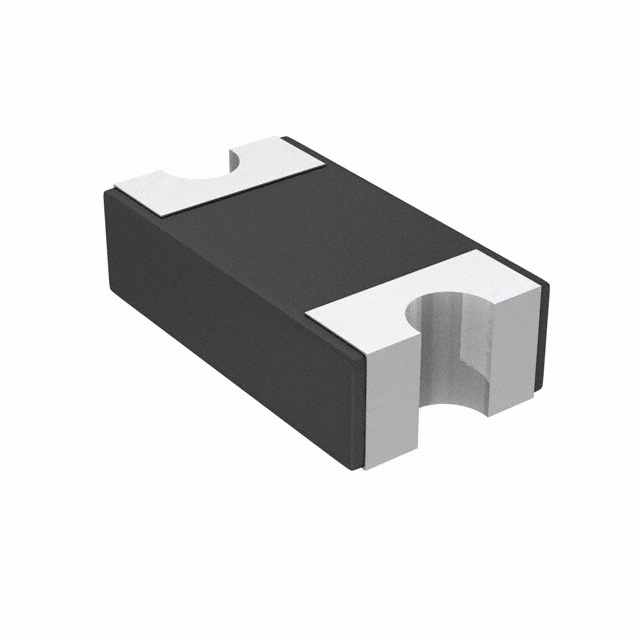

The SD1206S100S1R0 is a Schottky barrier rectifier diode manufactured by KYOCERA AVX. It utilizes lead-less chip packaging technology for improved heat transfer and current handling. The device features a 1206 (3216 metric) surface mount package with FRP substrate and epoxy underfill. Key electrical specifications include a maximum repetitive reverse voltage of 100 V, a maximum forward current of 1 A, and a peak forward surge current of 20 A. The typical forward voltage is 0.76 V at 1 A, with a maximum reverse current of 15 mA at the rated voltage.

Single Diodes Feature Summary

• Lead-less chip form factor eliminates lead frame wire bonds to provide top-bottom symmetry.
• Low forward voltage characteristics contribute to high efficiency and low power loss.
• High current capability relative to standard SOD devices within the same footprint.
• Package material meets UL 94V-0 classification standards.

Single Diodes Applications

• Switch mode power supplies
• High frequency rectification circuits
• Portable battery powered devices
• Reverse bias protection

Single Diodes Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific lot traceability upon receipt. Ensure storage conditions remain within the specified temperature range to maintain solderability and structural integrity before assembly.

Single Diodes Selection Notes

Select this component when a 100 V rating is required in a compact 1206 footprint. Consider the thermal resistance values for PCB layout optimization. Evaluate the trade-off between forward voltage drop and reverse leakage current against circuit requirements compared to silicon alternatives.

Single Diodes Part Context

This part belongs to the SD series of Schottky diodes from KYOCERA AVX. The series offers various voltage ratings and current capabilities across multiple EIA sizes including 0603, 0805, 2010, and 3220. The lead-less design distinguishes it from traditional packaged diodes by removing the lead frame.

Single Diodes Replacement Considerations

Cross-reference with other 1206 Schottky diodes offering 100 V and 1 A ratings. Verify pinout compatibility and thermal performance metrics. Note that ordering suffixes may indicate variations in packaging or voltage tolerance which do not inherently change the functional parameters unless explicitly stated in datasheets.
