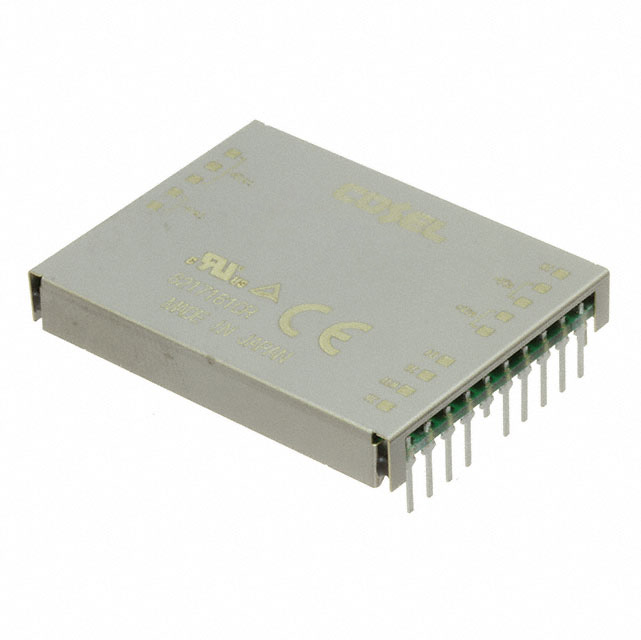

SFCS30243R3C

SFCS30243R3C is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cosel USA, Inc.. Its product description is DC DC CONVERTER 3.3V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SFCS30243R3C

• Description：DC DC CONVERTER 3.3V 30W
• Series：SFCS (30W)
• Mfr：Cosel USA, Inc.
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：9A
• Power (Watts)：30 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：20-DIP Module, 17 Leads
• Size / Dimension：1.55" L x 1.32" W x 0.35" H (39.3mm x 33.5mm x 8.8mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
