SG-210SCB 26.0000ML0

Oscillators Overview

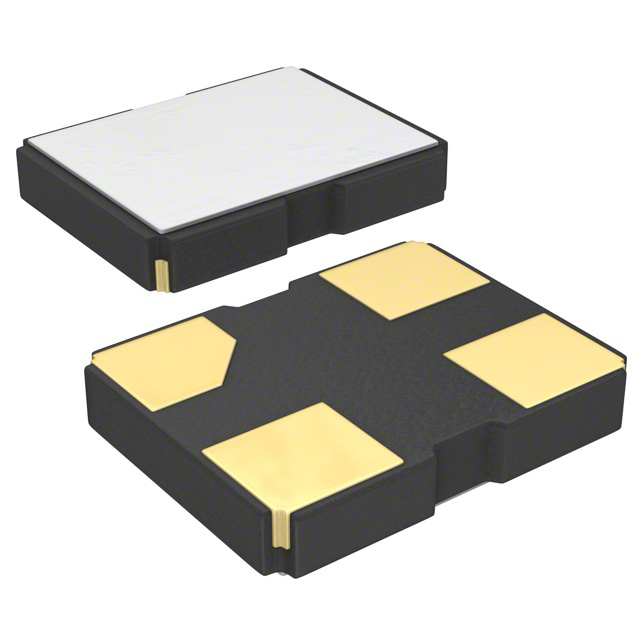

The SG-210SCB 26.0000ML0 is a standard CMOS crystal oscillator manufactured by Seiko Epson Corporation. It operates at a nominal frequency of 26 MHz with a supply voltage of 3.3V. The device features a frequency stability of ±50ppm and supports an operating temperature range from -40°C to 85°C. Maximum supply current is specified at 3mA. It includes a standby function for power management. The component utilizes a surface-mount package measuring 2.50mm x 2.00mm, designed for compact electronic applications requiring precise timing signals.

Oscillators Feature Summary

• Integrates a crystal base resonator for stable frequency generation
• Supports standby mode to reduce power consumption during idle states
• Utilizes CMOS output interface for digital circuit compatibility

Oscillators Applications

• Embedded systems requiring precise clock synchronization
• Consumer electronics with limited power budgets
• Industrial control modules operating in variable temperatures

Oscillators Procurement Notes

Verify component authenticity through authorized distributors. Confirm that the part number matches the specific suffix requirements for your design. Check for obsolescence status as this model may be discontinued. Ensure replacement components meet identical electrical specifications and pinout configurations. Validate supplier documentation against official manufacturer datasheets before integration.

Oscillators Selection Notes

Select this component when a 26 MHz reference signal is required within a 3.3V logic environment. Consider the ±50ppm stability requirement against system timing tolerances. Evaluate the thermal range suitability for the intended operational environment. Assess the physical footprint constraints against available PCB space. Verify compatibility with existing clock distribution networks.

Oscillators Part Context

This oscillator belongs to the SG-210 series, which provides standard XO solutions. The series emphasizes low power consumption and small form factors. It targets applications where size and energy efficiency are critical. The CMOS output ensures direct interfacing with modern digital processors without additional level shifting.

Oscillators Replacement Considerations

Direct substitutes include variants with different suffixes such as ML3 or MF5, which may offer adjusted stability or packaging options. Verify electrical equivalence before substitution. Cross-reference pinouts and voltage levels to ensure compatibility.
