SL 22 112 38 G

Headers, Male Pins Overview

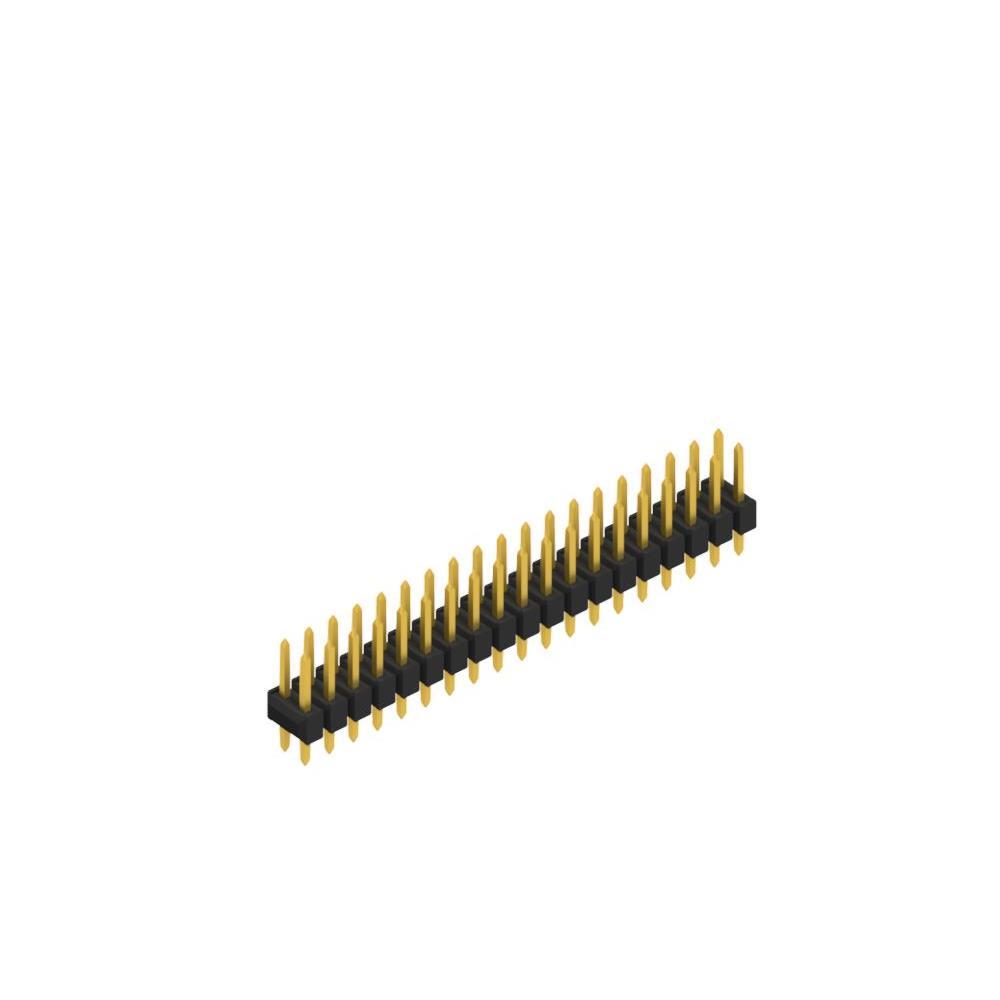

The SL 22 112 38 G is a two-row male pin header manufactured by Fischer Elektronik. It features 38 positions with a 0.100-inch (2.54 mm) pitch. The connector utilizes through-hole mounting and includes tin-plated contacts. Key dimensions include an overall contact length of 11.2 mm, a mating contact length of 5.4 mm, and a column contact length of 3.0 mm. The insulation height is 2.80 mm. The component is designed for board-to-board or wire-to-board applications.

Headers, Male Pins Feature Summary

• Two-row configuration for high-density interconnects
• Through-hole mounting for secure PCB attachment
• Tin-plated contacts for corrosion resistance

Headers, Male Pins Applications

• Board-to-board connections
• Wire-to-board assemblies
• General electronic equipment interconnects

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm the 38-position count and two-row layout. Ensure compatibility with mating sockets regarding pitch and row spacing. Check surface finish specifications if environmental conditions require specific plating thicknesses beyond standard tin.

Headers, Male Pins Selection Notes

Select this component when a two-row header with a 2.54 mm pitch is required. Confirm that the 38-position count matches the circuit design. Verify that the through-hole mounting style aligns with the PCB fabrication capabilities. Consider the physical dimensions, particularly the 11.2 mm total length, for enclosure fitment.

Headers, Male Pins Part Context

This part belongs to the SL 22 series of precision electronic components from Fischer Elektronik. The series is characterized by compact form factors and standardized pitches. The SL 22 series typically offers various position counts and row configurations to suit different density requirements in modern electronics.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Cross-reference with other Fischer Elektronik headers in the SL 22 series only if electrical and mechanical parameters match exactly.
