SLY 12 SMD 133 26 G

$3.02

Description：TWO ROWS, 0.5 MM, SUITABLE FOR
Series：SLY 12 SMD 133
Mfr：Fischer Elektronik
Package：Bulk

SKU:708990e7d56a Category: Headers, Male Pins Brand: Fischer Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SLY 12 SMD 133 26 G is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is TWO ROWS, 0.5 MM, SUITABLE FOR. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SLY 12 SMD 133 26 G

Description：TWO ROWS, 0.5 MM, SUITABLE FOR
Series：SLY 12 SMD 133
Mfr：Fischer Elektronik
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：26
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.142" (3.60mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：7.87µin (0.200µm)
Contact Finish - Post：Gold
Contact Material：Copper Tin
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：100VDC

Headers, Male Pins datasheet and documents for SLY 12 SMD 133 26 G

SLY 12 SMD 133 26 G

Headers, Male Pins Overview

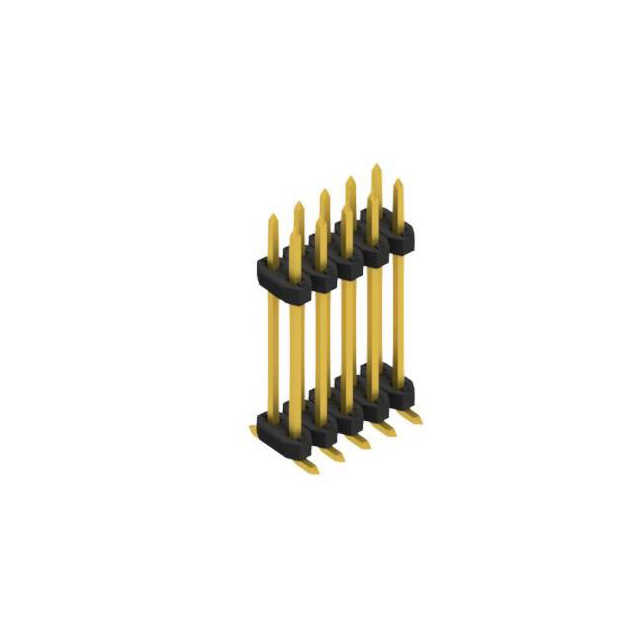

The SLY 12 SMD 133 26 G is a surface mount male pin header manufactured by Fischer Elektronik. It features a dual-row configuration with 26 contacts, arranged in a 2x13 layout. The connector utilizes a 2.00 mm pitch and a 2.00 mm row spacing to facilitate board-to-board or wire-to-board interconnections. Designed for stacked PCB applications, the insulator position along the total pin length is adjustable. The component is intended for high-density electronic assemblies requiring reliable vertical stacking connections.

Headers, Male Pins Feature Summary

Surface mount construction for automated assembly processes
Adjustable insulator positioning along the pin length
Dual-row design supporting stacked printed circuit board architectures

Headers, Male Pins Applications

Interconnections of stacked PCBs
Board-to-board signal transmission
Wire-to-board connectivity solutions

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'G' corresponds to the required plating specification, as Fischer Elektronik datasheets indicate variations such as 'Z' and 'S' for different contact finishes. Confirm the exact contact count matches the 26-position requirement for your design. Ensure the surface mount footprint aligns with the manufacturer's recommended land pattern to guarantee proper solder joint integrity during reflow.

Headers, Male Pins Selection Notes

Select this component when a 2.00 mm pitch dual-row header is required for vertical stacking. Consider the adjustable insulator feature if precise height alignment between boards is critical. Compare against variants like 'SLY 12 SMD 133 26 Z' or 'SLY 12 SMD 133 26 S' if different contact plating options are needed for corrosion resistance or conductivity requirements.

Headers, Male Pins Part Context

This part belongs to the SLY 12 SMD series, which provides rectangular male headers for compact electronic designs. The series supports various contact counts and plating options to accommodate diverse application needs. Fischer Elektronik designs these connectors to ensure stable mechanical and electrical performance in dense PCB layouts, particularly where space constraints limit connector height.
