SLY 3 082 46 G

Headers, Male Pins Overview

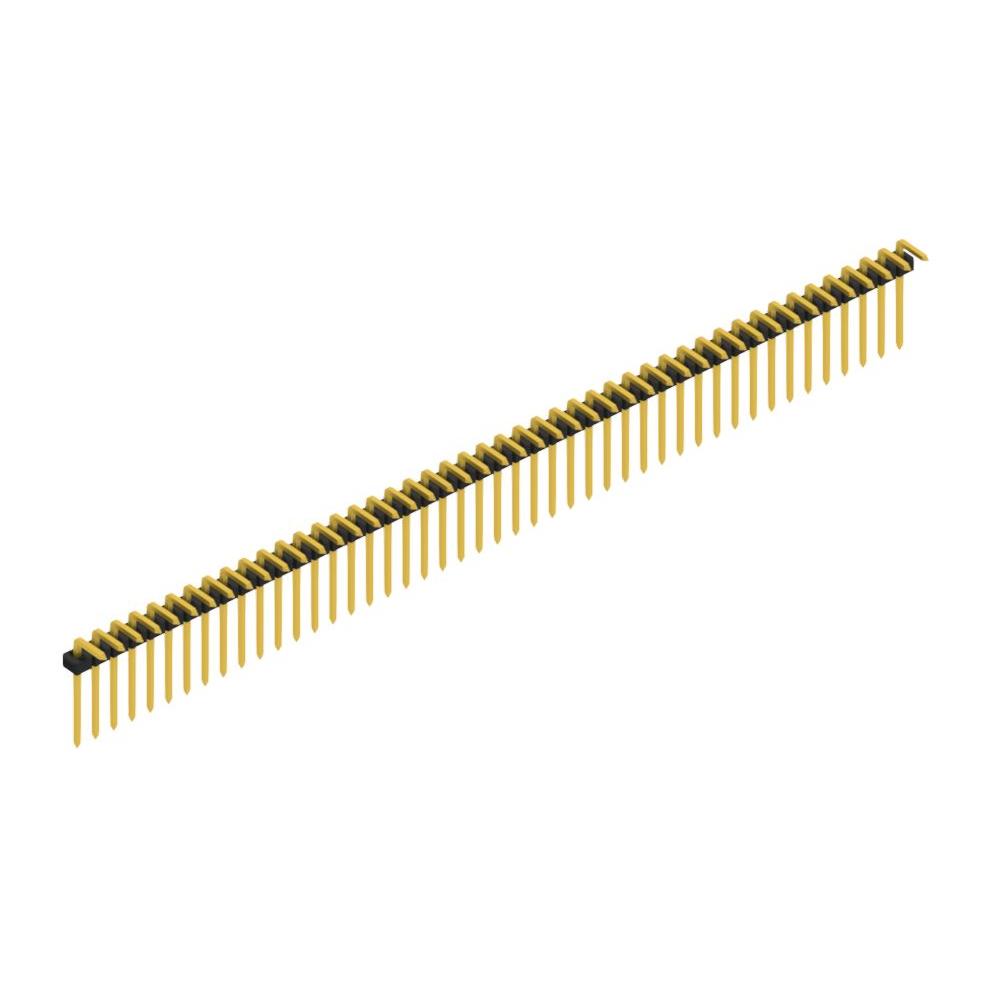

The SLY 3 082 46 G is a male pin header from the Fischer Elektronik SLY 3 series. It features a 2.00 mm pitch spacing and a single row configuration with 46 contacts. Designed for through-hole mounting, this right-angle connector utilizes polyamide (PA46) insulation material rated UL94 V-0 for flammability. The operating temperature range spans from -40°C to +163°C. Gold-plated contact surfaces ensure reliable conductivity for board-to-board or wire-to-board applications.

Headers, Male Pins Feature Summary

• Right-angle through-hole design for compact board integration
• Gold-plated contact surfaces for reliable conductivity
• Polyamide insulation with UL94 V-0 flammability rating

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Electronic control units requiring right-angle routing

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the '46' designation in the model number during procurement. Confirm that the right-angle orientation aligns with the PCB layout requirements. Ensure the operating temperature range of -40°C to 163°C meets the environmental specifications of the target application. Cross-reference the UL94 V-0 rating if fire safety compliance is critical for the assembly.

Headers, Male Pins Selection Notes

Select this component when a single-row, right-angle male header is required for high-density connections. The 2.00 mm pitch allows for compact circuit board designs compared to larger spacing options. Consider the PA46 insulation material properties for thermal stability. Verify that the through-hole mounting method is compatible with the manufacturing process and mechanical stress requirements of the final product.

Headers, Male Pins Part Context

Fischer Elektronik specializes in connectors, heat sinks, and thermal management solutions. The SLY series represents their standard line of pin headers designed for robust electronic assemblies. This manufacturer provides components that meet various international quality standards, including ISO 9001 and ISO 14001 certifications, ensuring consistent product reliability across industrial applications.

Headers, Male Pins Replacement Considerations

Compatible substitutes must maintain the 2.00 mm pitch, single-row configuration, and 46-contact count. Right-angle through-hole mounting is essential for mechanical compatibility. Insulation material and flammability ratings should match or exceed UL94 V-0 standards. Verify that the replacement part offers equivalent gold plating thickness for contact reliability.
